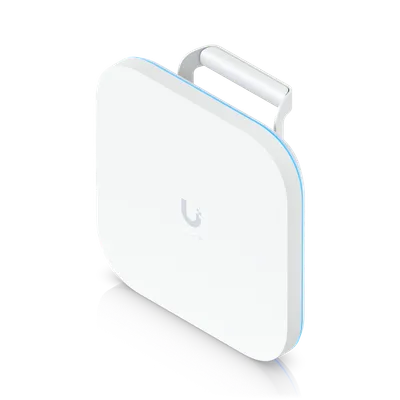

E7 Campus Indoor | PrisHundenArt.nr: E7-Campus-Indoor-US · P/N: E7-Campus-Indoor-US
- WiFi
- WiFi 7
- Vikt
- 2.2 kg
- 5 GHz
- Ja
- 6 GHz
- Ja
- Ethernet
- 10 Gbps
- LAN-portar
- 2
- Mounting
- Wall, Pole (Mounts Included) / VESA (Optional)
- 2,4 GHz
- Ja
- Mesh-stöd
- Mesh
- Strömförsörjning
- PoE++
- Täckningsyta
- 465 m²
- Max klienter
- 1000
- Spatial streams
- 10
Övriga specifikationer
- Uplink
- 10 GbE / 1 GbE
- Antennas
- (1) Internal with directional patterns
- Dimensions
- Device: 250 x 250 x 45.5 mm / (9.8 x 9.8 x 1.8") / Articulating mount: ⌀104 x 149.4 / (⌀4.1 x 5.9")
- MIMO 5 GHz
- 4 x 4 (DL/UL MU-MIMO)
- MIMO 6 GHz
- 4 x 4 (DL/UL MU-MIMO)
- Management
- Ethernet
- LEDs System
- R/G/B
- Max. BSSIDs
- 8 per Radio
- MIMO 2.4 GHz
- 2 x 2 (DL/UL MU-MIMO)
- Band Steering
- Ja
- WiFi Standard
- WiFi 7
- Zero-Wait DFS
- Ja
Priser hos återförsäljare
| Butik | Logotyp | Pris | Lager | |
|---|
| Inga aktuella priser tillgängliga. |
Recensioner
Laddar recensioner…
Mount MaterialStainless steel, aluminum alloy Channel BandwidthHT 20/40, VHT 20/40/80/160, / HE 20/40/80/160, / EHT 20/40/80/160/240/320 (MHz) Antenna Gain 5 GHzDirectional internal: 12 dBi, 100° x 55° Antenna Gain 6 GHzDirectional internal: 12 dBi, 90° x 50° Enclosure MaterialUV-stabilized polycarbonate, aluminum alloy Max. TX Power 5 GHz30 dBm Max. TX Power 6 GHz30 dBm / (36 dBm EIRP) Pole Mount Diameter1–2.5" (25–63.5 mm) Antenna Gain 2.4 GHzDirectional internal: 9 dBi, 90° x 80° Max. Data Rate 5 GHz8.6 Gbps (BW240) Max. Data Rate 6 GHz11.5 Gbps (BW320) Networking Interface(1) 10 GbE RJ45 port / (1) GbE RJ45 port Max. TX Power 2.4 GHz23 dBm Max. Data Rate 2.4 GHz688 Mbps (BW40) Max. Power Consumption44W Antenna beamwidth 5 GHz100° x 55° Antenna beamwidth 6 GHz90° x 50° Client Device IsolationJa Passpoint (Hotspot 2.0)Ja Supported Voltage Range42.5–57V DC RADIUS over TLS (RadSec)Ja Advanced Radio ManagementJa Antenna beamwidth 2.4 GHz90° x 80° Ambient Operating Humidity5 to 95% noncondensing Real-Time Spectral AnalysisJa Dynamic RADIUS-assigned VLANJa Supported Data Rates 802.11n6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) Ambient Operating Temperature-40 to 60° C (-40 to 140° F) Private Pre-Shared Key (PPSK)Ja 802.11v BSS Transition ManagementJa Application Requirements Mobile AppiOS version 10.30.2 and later / Android version 10.31.4 and later Application Requirements UniFi NetworkVersion 10.0.162 and later Supported Data Rates 802.11ac (WiFi 5)6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) Supported Data Rates 802.11ax (WiFi 6)7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) Supported Data Rates 802.11be (WiFi 7)7.3 Mbps to 11.5 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320) 802.11k Radio Resource Management (RRM)Ja Captive Hotspot Portal Voucher AuthenticationJa Captive Hotspot Portal Guest Network IsolationJa Captive Hotspot Portal Password AuthenticationJa Captive Hotspot Portal Custom Branding Landing PageJa Captive Hotspot Portal Payment-Based AuthenticationJa Captive Hotspot Portal External Portal Server SupportJa
