Ubiquiti

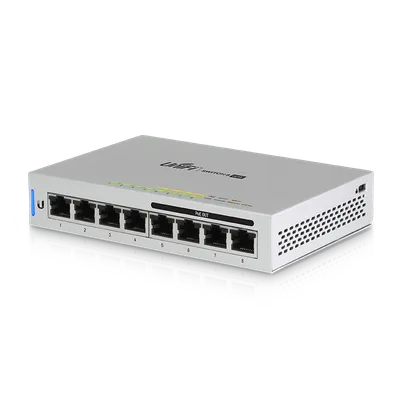

8 PoE (Gen1)
Art.nr: US-8-60W · P/N: US-8-60W
Specifikationer
Produktsida- Ethernet
- 1 Gbps
- MAC-tabell
- 16,000
- PoE-portar
- 4
- Portar
- 8
- Jumbo frame
- Ja
- PoE-budget
- 48 W
- Strömförbrukning
- 12 W
- Växlingskapacitet
- 16 Gbps
- Paketvidarebefordring
- 12 Mpps
Övriga specifikationer
- Weight
- 432 g (15.2 oz)
- LLDP-MED
- Ja
- Dimensions
- 148 x 100 x 31 mm / (5.8 x 3.9 x 1.2")
- Management
- Ethernet
- STP & RSTP
- Ja
- Voice VLAN
- Ja
- Form Factor
- Compact desktop, wall
- Flow Control
- Ja
- Jumbo Frames
- Ja
- Power Method
- (1) AC/DC adapter (Included)
- IGMP Snooping
- Ja
- PoE Ports PoE
- 4
- Storm Control
- Ja
- 802.1X Control
- Ja
- Certifications
- CE, FCC, IC, Anatel: 04915-19-08356
- Mount Material
- SGCC steel
- NDAA Compliant
- Ja
- Port Isolation
- Ja
- Port Mirroring
- Ja
- Forwarding Rate
- 12 Mpps
- Loop Protection
- Ja
- Max. PoE Output
- Up to PoE
- Supported VLANs
- 256
- Access Lists MAC
- 128
- Access Lists IPv4
- 128
- Egress Rate Limit
- Ja
- Enclosure Material
- SGCC steel
- Packet Buffer Size
- 1.5 MB
- Power Input Method
- AC input
- MAC Address Blocking
- Ja
- LACP Port Aggregation
- Ja
- MAC Address Table Size
- 16,000
- Port Layout 1 GbE RJ45
- 8 (4 PoE) / (1G/100M/10M)
- Supported Voltage Range
- 44–57V DC/PoE
- DHCP Snooping & Guarding
- Ja
- Virtual Network Override
- Ja
- Ambient Operating Humidity
- 5 to 95% noncondensing
- MAC-Based Port Restriction
- Ja
- Ambient Operating Temperature
- -5 to 45° C (23 to 113° F)
- Total Non-Blocking Throughput
- 8 Gbps
- IP-Based ACLs & Network Isolation
- Ja
- MAC-Based ACLs & Device Isolation
- Ja
- Multicast & Broadcast Rate Limiting
- Ja
- Max. PoE Wattage per Port by PSE PoE
- 15.4W
- Application Requirements UniFi Network
- Version 6.3.51 and later
- Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
- Ja
