WiFi

WiFi 5

5 GHz

Ja

6 GHz

Nej

Ethernet

1 Gbps

LAN-portar

8

USB-portar

2

WAN-portar

1

2,4 GHz

Ja

Övriga specifikationer

DDNS

TP-Link / NO-IP / DynDNS

DHCP

Address Reservation / DHCP Client List / Server

IPTV

IGMP Proxy / IGMP Snooping / Bridge / Tag VLAN

Power

12 V ⎓ 5 A

Buttons

Wi-Fi On/Off Button / Power On/Off Button / LED On/Off Button / WPS Button / Reset Button

Processor

1.8 GHz 64 Bit Quad-Core CPU

Protocols

IPv4 / IPv6

WAN Types

Dynamic IP / Static IP / PPPoE / PPTP / L2TP

VPN Server

OpenVPN / PPTP

WiFi Range

4 Bedroom Houses / 8x Detachable High-Performance Antennas / Multiple antennas form a signal-boosting array to cover more directions and large areas / / Beamforming / Concentrates wireless signal strength towards clients to expand WiFi range / / High-Power FEM / Improves transmission power to strengthen signal coverage / / 4T4R / Multiple streams in the same band strengthen the fault tolerance in transmission

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉) / Storage Temperature: -40℃~70℃ (-40℉ ~158℉) / Operating Humidity: 10%~90% non-condensing / Storage Humidity: 5%~90% non-condensing

WiFi Speeds

AC5400 / 5 GHz: 2167 Mbps (802.11ac) / 5 GHz: 2167 Mbps (802.11ac) / 2.4 GHz: 1000 Mbps (802.11n)

Service Kits

HomeCare

Cloud Service

Auto Firmware Upgrade / OTA Firmware Upgrade / TP-Link ID / DDNS

Guest Network

1x 5 GHz Guest Network / 1x 2.4 GHz Guest Network

WiFi Capacity

High / Tri-Band / Allocate devices to different bands for optimal performance / / 4x4 MU-MIMO / Simultaneously communicates with multiple MU-MIMO clients / / Airtime Fairness / Improves network efficiency by limiting excessive occupation / / DFS / Access an extra band to reduce congestion

Certifications

FCC, CE, RoHS

NAT Forwarding

Port Forwarding / Port Triggering / DMZ / UPnP

Package Content

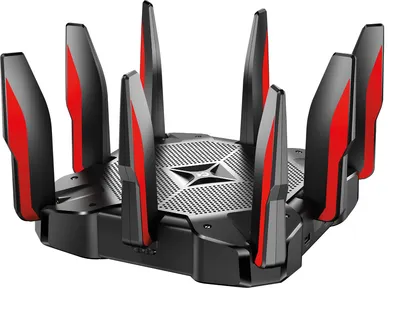

Wi-Fi Router Archer C5400X / Power Adapter / RJ45 Ethernet Cable / Quick Installation Guide

WiFi Encryption

WEP / WPA / WPA2 / WPA/WPA2-Enterprise (802.1x)

Network Security

SPI Firewall / Access Control / IP & MAC Binding / Application Layer Gateway / / HomeCare Antivirus / Malicious Site Checker / Port Intrusion Prevention / Infected Device Isolation / Notification and Log

Parental Controls

HomeCare Parental Controls / Custom Profiles / Content Filtering / App Block / URL Filtering / Time Limit / Time Schedule (Bedtime) / Log Insight

Dimensions (WxDxH)

11.3 x 11.3 x 7.2 in / (288 x 288 x 184 mm)

Quality of Service

GeForce NOW QoS / QoS by Device / / HomeCare QoS / QoS by Application

Management Features

Tether App / Webpage / Check Web Emulator>

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser / / Cable or DSL Modem (if needed) / / Subscription with an internet service provider (for internet access)
