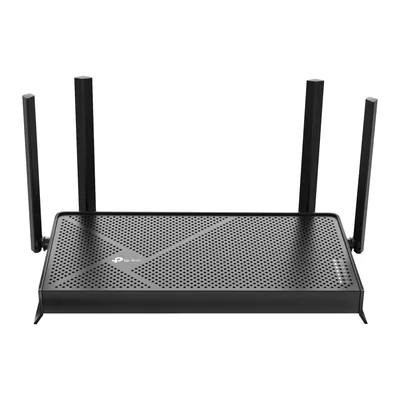

Archer BE230

WiFi

WiFi 7

5 GHz

Ja

6 GHz

Nej

Ethernet

2.5 Gbps

LAN-portar

4

USB-portar

1

WAN-portar

1

2,4 GHz

Ja

Mesh-stöd

EasyMesh

Övriga specifikationer

DDNS

• TP-Link / • NO-IP / • DynDNS

DHCP

• Address Reservation / • DHCP Client List / • Server

IPTV

• IGMP Proxy / • IGMP Snooping / • Bridge / • Tag VLAN

Power

12 V ⎓ 2 A (US) / 12 V ⎓ 1.5 A (EU)

Buttons

• Power On/Off Button / • Wi-Fi On/Off Button / • LED Button / • WPS Button / • Reset Button

Protocol

• IPv4 / • IPv6

WAN Type

• Dynamic IP / • Static IP / • PPPoE / • PPTP / • L2TP

VPN Client

• Open VPN Client / • PPTP VPN Client / • L2TP VPN Client / • WireGuard VPN Client

VPN Server

• OpenVPN Server / • PPTP VPN Server / • L2TP VPN Server / • WireGuard VPN Server

WiFi Range

3 Bedroom Houses / 4x External Antennas / Multiple antennas form a signal-boosting array to cover more directions and large areas / / Beamforming / Concentrates wireless signal strength towards clients to expand WiFi range

Environment

• Operating Temperature: 0℃~40℃ (32℉ ~104℉) / • Operating Humidity: 10%~90% non-condensing

Service Kit

HomeShield / Learn More>

Cloud Service

• Auto Firmware Upgrade / • TP-Link ID / • DDNS

Guest Network

• 1x 5 GHz Guest Network / • 1x 2.4 GHz Guest Network

WiFi Capacity

High / Dual-Band / Allocate devices to different bands for optimal performance / / 2x2 MU-MIMO / Simultaneously communicates with multiple MU-MIMO clients / / OFDMA / Simultaneously communicates with multiple clients / / Airtime Fairness / Improves network efficiency by limiting excessive occupation / / DFS / Access an extra band to reduce congestion / / 4 Streams / Connect your devices to more bandwidth

Wireless Mode

• Router Mode / • Access Point Mode

Certifications

CE, FCC, RoHS

NAT Forwarding

• Port Forwarding / • Port Triggering / • DMZ / • UPnP

WiFi Encryption

• WPA / • WPA2 / • WPA3 / • WPA/WPA2-Enterprise (802.1x)

Network Security

• SPI Firewall / • Access Control / • IP & MAC Binding / • Application Layer Gateway / / • HomeShield Security / Real-Time IoT Protection / Malicious Site Blocker / Intrusion Prevention System / DDoS Attack Prevention / Home Network Scanner

Advanced Features

• Multi-Link Operation (MLO) / • 4K-QAM / • Multi-RUs / • EasyMesh-Compatible / • Works with Alexa and Google Assistant / • IoT Network /

Parental Controls

HomeShield Parental Controls / Custom Profiles / Professional Content Filter Library / Family Time / Bedtime / Off Time / Time Rewards / Family Online Time Ranking / Pause the Internet / Weekly and Monthly Reports

Quality of Service

QoS by Device

Management Features

• Tether App / • Webpage

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser / / Cable or DSL Modem (if needed) / / Subscription with an internet service provider (for internet access)
