WiFi

WiFi 6

5 GHz

Ja

6 GHz

Nej

Ethernet

1 Gbps

LAN-portar

4

USB-portar

1

WAN-portar

1

2,4 GHz

Ja

Övriga specifikationer

DDNS

TP-Link / NO-IP / DynDNS

DHCP

Address Reservation / DHCP Client List / Server

IPTV

IGMP Proxy / IGMP Snooping / Bridge / Tag VLAN

Power

12 V ⎓ 2.5 A

Buttons

Wi-Fi On/Off Button / Power On/Off Button / LED On/Off Button / WPS Button / Reset Button

OneMesh

OneMesh Supported / Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh helps you create a more flexible network that covers your entire home with TP-Link OneMesh products. / Learn More> / All OneMesh Products>

Processor

1 GHz Dual-Core CPU

Protocols

IPv4 / IPv6

WAN Types

Dynamic IP / Static IP / PPPoE / PPTP / L2TP

VPN Client

• Open VPN Client / • PPTP VPN Client / • L2TP VPN Client

VPN Server

OpenVPN / PPTP

WiFi Range

3 Bedroom Houses / 6x Fixed High-Performance Antennas / Multiple antennas form a signal-boosting array to cover more directions and large areas / / Beamforming / Concentrates wireless signal strength towards clients to expand WiFi range / / High-Power FEM / Improves transmission power to strengthen signal coverage / / 4T4R / Multiple streams in the same band strengthen the fault tolerance in transmission

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉) / Storage Temperature: -40℃~70℃ (-40℉ ~158℉) / Operating Humidity: 10%~90% non-condensing / Storage Humidity: 5%~90% non-condensing

WiFi Speeds

AX5400 / 5 GHz: 4804 Mbps (802.11ax, HE160) / 2.4 GHz: 574 Mbps (802.11ax)

Service Kits

HomeShield / Learn More>

Cloud Service

Auto Firmware Upgrade / TP-Link ID / DDNS

Guest Network

1x 5 GHz Guest Network / 1x 2.4 GHz Guest Network

WiFi Capacity

High / Dual-Band / Allocate devices to different bands for optimal performance / / 4x4 MU-MIMO / Simultaneously communicates with multiple MU-MIMO clients / / OFDMA / Simultaneously communicates with multiple Wi-Fi 6 clients / / Airtime Fairness / Improves network efficiency by limiting excessive occupation / / DFS / Access an extra band to reduce congestion / / 6 Streams / Connect your devices to more bandwidth

Certifications

FCC, CE, RoHS

NAT Forwarding

Port Forwarding / Port Triggering / DMZ / UPnP / Virtual Server

Package Content

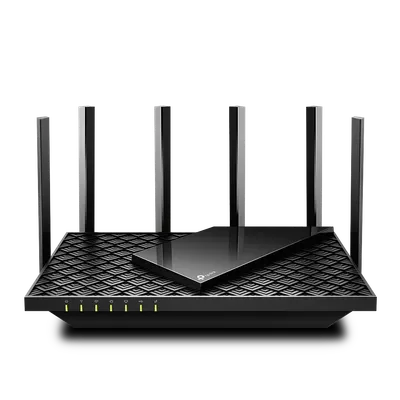

Wi-Fi Router Archer AX72 / Power Adapter / RJ45 Ethernet Cable / Quick Installation Guide

WiFi Encryption

WPA / WPA2 / WPA3 / WPA/WPA2-Enterprise (802.1x)

Network Security

SPI Firewall / Access Control / IP & MAC Binding / Application Layer Gateway / / HomeShield Security / Real-Time IoT Protection / Malicious Site Blocker / Intrusion Prevention System / DDoS Attack Prevention / Home Network Scanner

Parental Controls

HomeShield Parental Controls / Custom Profiles / Professional Content Filter Library / Family Time / Bedtime / Off Time / Time Rewards / Family Online Time Ranking / Pause the Internet / Weekly and Monthly Reports

Dimensions (WxDxH)

10.7 x 5.8 x 1.9 in / (272.5 x 147.2 x 49.2 mm)

Quality of Service

QoS by Device

Management Features

Tether App / Webpage /

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser / / Cable or DSL Modem (if needed) / / Subscription with an internet service provider (for internet access)

WiFi Transmission Power

CE: / <20dBm{2.4GHz} / <23dBm{5.15GHz~5.35GHz} / <30dBm{5.47GHz~5.725GHz} / FCC: / <24dBm{5.25GHz~5.35GHz&5.47GHz~5.725GHz } / <30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz }

WiFi Reception Sensitivity

2.4GHz: / 11ac VHT20 MCS0:-94.5dBm / 11ac VHT20 MCS8:-72.5dBm / 11ac VHT40 MCS0:-92.5dBm / 11ac VHT40 MCS9:-69.5dBm / 11ax HE20 MCS0:-95dBm / 11ax HE20 MCS11:-64.5dBm / 11ax HE40 MCS0:-92.5dBm / 11ax HE40 MCS11:-62dBm / 5GHz: / 11ac VHT20 MCS0:-97dBm / 11ac VHT20 MCS8:-74dBm / 11ac VHT40 MCS0:-95dBm / 11ac VHT40 MCS9:-70dBm / 11ac VHT80 MCS0:-91.5dBm / 11ac VHT80 MCS9:-66dBm / 11ac VHT160 MCS0:-86dBm / 11ac VHT160 MCS9:-61dBm / 11ax HE20 MCS0:-95dBm / 11ax HE20 MCS11:-64dBm / 11ax HE40 MCS0:-91.5dBm / 11ax HE40 MCS11:-62dBm / 11ax HE80 MCS0:-88dBm / 11ax HE80 MCS11:-58dBm / 11ax HE160 MCS0:-85.5dBm / 11ax HE160 MCS11:-55dBm
