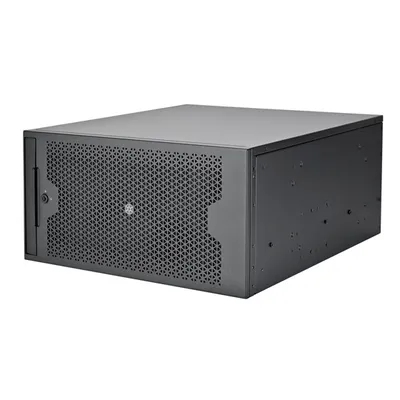

RM53-502

Djup

485 mm

Bredd

440 mm

Höjd

220 mm

Volym

46.9 L

Vikt

11.47 kg

Front I/O

USB-C x 1, USB 3.x Type-A x 2

Chassityp

Rackmount

Material

Metal

Dimensioner

440 220 530 mm

Formfaktor

Mini-ITX, Micro-ATX, ATX, E-ATX, SSI-CEB, SSI-EEB

Max 120 mm-fläktar

4

Max 140 mm-fläktar

1

Medföljande fläktar

120mm x 3, 80mm x 3 (2 x 80mm fans included), Rear I/O: 120mm x 1 / 140mm x 1 (1 x 140mm fans included), Rear fan cage: 80mm x 2

Max GPU-längd

454 mm

Max PSU-längd

190 mm

Expansionsplatser

8

Max kylarhöjd

178 mm

Övriga specifikationer

Extra

Side switch for chassis intrusion security | * For dual CPU cooler installation, please refer to the manual for detailed limitations.

Model No.

SST-RM53-502

Power Supply

Primary PSU slot: PS2 (ATX) / Mini Redundant / 2U CRPS Redundant | Secondary PSU slot: SFX (occupies 3.5" bracket)

Drive Support

External: 5.25" x 2 (compatible with 2.5" x 4 or 3.5" x 2) | Internal: 3.5” x 1 (compatible with 2.5” x 2) | 3.5” x 2 (compatible with SFX PSU x 1) | 2.5” x 5 (two expansion cards occupy the 8th slot position)

Cooling system

Front: 120mm x 3, 80mm x 3 (2 x 80mm fans included) | Rear: Rear I/O: 120mm x 1 / 140mm x 1 (1 x 140mm fans included) | Rear fan cage: 80mm x 2

LED Indicators

Power status x 1 | HDD activity x 1 | LAN activity x 2

Radiator support

Front: 120mm / 240mm / 360mm | Rear: 120mm

Cooling system Rear

Rear I/O: 120mm x 1 / 140mm x 1 (1 x 140mm fans included) | Rear fan cage: 80mm x 2

Cooling system Front

120mm x 3, 80mm x 3 (2 x 80mm fans included)

Radiator support Rear

120mm

Drive Support External

5.25" x 2 (compatible with 2.5" x 4 or 3.5" x 2)

Drive Support Internal

3.5” x 1 (compatible with 2.5” x 2) | 3.5” x 2 (compatible with SFX PSU x 1) | 2.5” x 5 (two expansion cards occupy the 8th slot position)

Radiator support Front

120mm / 240mm / 360mm
