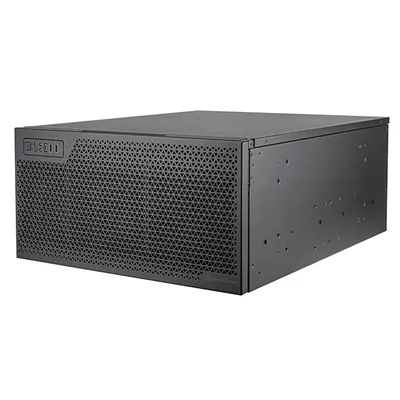

RM52

Djup

22 mm

Bredd

17 mm

Höjd

9 mm

Volym

0 L

Vikt

11.45 kg

Front I/O

USB-C x 1, USB 3.x Type-A x 2

Chassityp

Rackmount

Material

Metal

Dimensioner

440 220 605 mm

Formfaktor

Mini-ITX, Micro-ATX, ATX, E-ATX, SSI-CEB, SSI-EEB

Max 120 mm-fläktar

7

Max 140 mm-fläktar

1

Medföljande fläktar

120mm x 6, Rear I/O: 120mm x 1 / 140mm x 1 (1 x 140mm fan included), Rear fan cage: 80mm x 2 (2 x 80mm fans included)

Max GPU-längd

512 mm

Max PSU-längd

190 mm

Expansionsplatser

8

Max kylarhöjd

192 mm

Övriga specifikationer

Extra

Side switch for chassis intrusion security

Model No.

SST-RM52

Power Supply

Primary PSU slot: PS2 (ATX) / Mini Redundant / 2U Redundant (V3.0 or after) | Secondary PSU slot: SFX (occupies 3.5" bracket)

Drive Support

Internal: 3.5" x 2 (compatible with 2.5" x 3) + 3.5" x 2 (compatible with SFX PSU) | 2.5" x 4

Cooling system

Front: 120mm x 6 | Rear: Rear I/O: 120mm x 1 / 140mm x 1 (1 x 140mm fan included) | Rear fan cage: 80mm x 2 (2 x 80mm fans included)

LED Indicators

Power status x 1 | HDD activity x 1 | LAN activity x 2

Radiator support

Front: 120mm x 4 / 360mm x 2 | Rear: 120mm x 1

Cooling system Rear

Rear I/O: 120mm x 1 / 140mm x 1 (1 x 140mm fan included) | Rear fan cage: 80mm x 2 (2 x 80mm fans included)

Cooling system Front

120mm x 6

Radiator support Rear

120mm x 1

Drive Support Internal

3.5" x 2 (compatible with 2.5" x 3) + 3.5" x 2 (compatible with SFX PSU) | 2.5" x 4

Radiator support Front

120mm x 4 / 360mm x 2
