Front I/O

USB 3.1 Gen 1 Type-A x 2 [2]

Chassityp

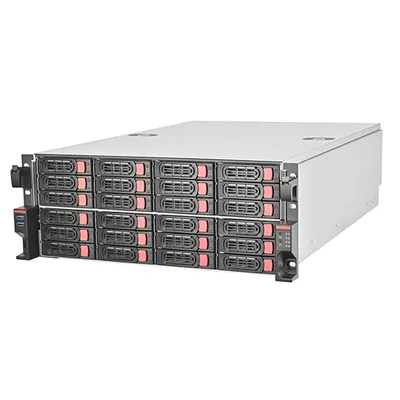

Rackmount 4U

Dimensioner

442 × 175 × 660 mm

Formfaktor

SSI-EEB, SSI-CEB, E-ATX, ATX, Micro-ATX, Mini-ITX

Max 120 mm-fläktar

0

Max 140 mm-fläktar

0

Max GPU-längd

340 mm

Expansionsplatser

7

Max kylarhöjd

148 mm

Övriga specifikationer

Extra

[1] Please ensure the mounting holes of your Mini Redundant PSU matches the mounting holes on the rear panel of RM43-324-RS (See below diagram) | [2] RM43-324-RS’s USB internal cable is 800mm long, so if you are connecting an external enclosure to the USB3.1 port, we recommend using it with shorter cables to prevent performance loss.

Model No.

SST-RM43-324-RS

Power Supply

ATX (PS2) / Mini Redundant / 2U Redundant [1]

Drive Support

External: 3.5" hot-swap x 24

Front buttons

Power On / Off, system reset

HDD backplane

backplane: 24 ports SAS / SATA to Mini-SAS HD SFF-8643 x 6 with SGPIO | power connector: 4-Pin peripheral x 12 | interface: SAS III / II / I, SATA III / II / I

Cooling system

Rear: 80mm x 2 fan slots | Internal: Hot-swap 120 x 38mm PWM ball bearing fan x 3

LED Indicators

Chassis: Power LED x 1: Blue | HDD Access x 1: Green | LAN LED x 2: Green | HDD Tray: HDD Power LED x 24: Yellow | HDD Access x 24: Blinking green

Cooling system Rear

80mm x 2 fan slots

Main metal thickness

1.0mm ~ 1.2mm

Max. supported weight

16,8 kg | 80 kg

Drive Support External

3.5" hot-swap x 24

LED Indicators Chassis

Power LED x 1: Blue | HDD Access x 1: Green | LAN LED x 2: Green

Cooling system Internal

Hot-swap 120 x 38mm PWM ball bearing fan x 3

HDD backplane backplane

24 ports SAS / SATA to Mini-SAS HD SFF-8643 x 6 with SGPIO

HDD backplane interface

SAS III / II / I, SATA III / II / I

LED Indicators HDD Tray

HDD Power LED x 24: Yellow | HDD Access x 24: Blinking green

HDD backplane power connector

4-Pin peripheral x 12

Rack cabinet mounting hole distance (Min. ~ Max.)

663mm ~ 915mm ±3mm
