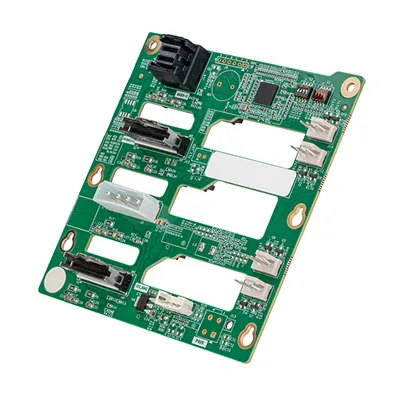

RAC380-BP-304H

Djup

25 mm

Bredd

106 mm

Höjd

110 mm

Volym

0.3 L

Vikt

0.057 kg

Dimensioner

106 110 25 mm

Övriga specifikationer

Extra

* Please ensure that the HBA/RAID card and cable used are compliant with the SFF-9402 pinout specification.

Model No.

SST-RAC380-BP-304H

Support list

WS380-E

Drive Support

2.5"/3.5" PCIe NVMe U.2 (SFF-8639) SSD x 4 | OR | 2.5"/3.5" SAS/SATA SSD/HDD x 4

HDD backplane

power connector: 4-Pin peripheral x 1 | interface: 2 port SlimSAS 8i (SFF-8654) connector | 1 port Mini-SAS HD (SFF-8643) connector | Transfer rate: NVMe mode : up to 32Gbps each channel (dependent on drive speed) | SAS/SATA mode : up to 12Gbps each channel (dependent on drive speed)

LED Indicators

HDD Access LED x 4: Blinking green | HDD Status LED x 4: Blinking blue/Red

HDD backplane interface

2 port SlimSAS 8i (SFF-8654) connector | 1 port Mini-SAS HD (SFF-8643) connector

HDD backplane Transfer rate

NVMe mode : up to 32Gbps each channel (dependent on drive speed) | SAS/SATA mode : up to 12Gbps each channel (dependent on drive speed)

HDD backplane power connector

4-Pin peripheral x 1
