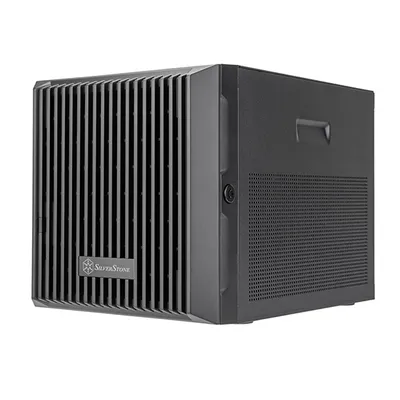

CS340

Djup

12 mm

Bredd

9 mm

Höjd

9 mm

Volym

0 L

Front I/O

USB-C x 1, USB 3.x Type-A x 2

Material

Metal, Plastic

Dimensioner

220 225 300 mm

Formfaktor

Mini-ITX

Max 120 mm-fläktar

1

Max 140 mm-fläktar

0

Medföljande fläktar

80mm x 2 (optional), 120mm x 1 (1 x 120mm fan included), 60mm x 1 (optional), *Rear of drive cage

Max GPU-längd

250 mm

Max PSU-längd

235 mm

Expansionsplatser

1

Max kylarhöjd

65 mm

Övriga specifikationer

Extra

[1] Hot-swapping support depends on motherboard and add-in card compatibility. | [2] Transfer speed depends on the drives motherboard add-in card and cables. The motherboard or add-in card must support PCIe bifurcation to split a PCIe x16/x8 slot into x4x4 or x4x2 configurations. | [3] To use SAS drives with a SATA motherboard one of the following conditions must be met otherwise the drives will not function | 1. The motherboard supports SAS drives (refer to motherboard specifications) | 2. Install a SAS controller card | 3. The SAS drive supports SATA mode (check the label on the drive or manufacturer website)

Model No.

SST-CS340

Power Supply

Flex ATX PSU

Drive Support

External: 9.5mm slim ODD x 1 , 2.5" / 3.5" SAS / SATA external hot-swap x 4 | Internal: 2.5” x 1

Front buttons

Power reset

HDD backplane

backplane: NVMe U.2 (SFF-8639) x 4, supports up to PCIe 4.0 or SAS 12Gb/s / SATA 6Gb/s ［2］ | power connector: 4-pin peripheral x 1, 15-pin SATA x 1 | interface: 2 x SlimSAS 8i (SFF-8654), supports up to PCIe 4.0 | or 4 x 7-pin SATA connectors, or SAS primary channel connection ［3］

Cooling system

Front: 80mm x 2 (optional) | Rear: 120mm x 1 (1 x 120mm fan included) | Internal: 60mm x 1 (optional) | *Rear of drive cage

LED Indicators

HDD Tray: HDD Power LED: Green | HDD Access : Blue blinking
