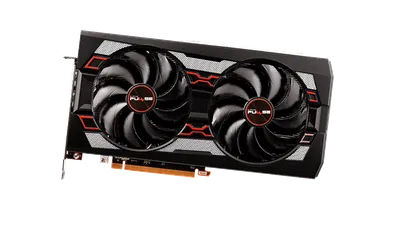

PULSE RX 5700 8G GDDR6

TDP

187 W

Bredd

135 mm

Höjd

46.5 mm

Längd

254 mm

Basklocka

1700 MHz

CUDA-kärnor

2304

Minnesbuss

256-bit

Boost-klocka

1750 MHz

Minne

8 GB

Minnestyp

GDDR6

Max antal skärmar

4

Minneshastighet

14 Gbps

Lanseringsår

2019

Buss

PCIe 4.0 x16

Max upplösning

HDMI: 4096×2160@60Hz DisplayPort1.4: 5120×2880@60Hz

Displayutgångar

1x HDMI 3x DisplayPort

Övriga specifikationer

OS

Windows 11, 10, Windows 7 64bit operating system required

API

Vulkan OpenGL 4.6 OpenCL 2.0 DirectX 12 Shader Model 6.4

Game Index

Extreme 1440P

Cooler Type

Dual-X Cooling Dual Fan Two-Ball Bearing

Form Factor

2.3 slot, ATX Dimension: 254 x 135 x 46.5 (mm)

AMD Features

RDNA Architecture 2nd Gen 7nm GPU GDDR6 Memory Power Efficiency PCI Express 4.0 Support Video Streaming up to 8K Display Port 1.4 (HBR3) / DSC Radeon Software Radeon Boost Radeon Image Sharpening Radeon Anti-Lag AMD FidelityFx Async Compute Radeon Rays Audio + True Audio Next Radeon FreeSync 2 HDR Radeon VR Ready Premium

BIOS Support

Dual UEFI

Sapphire Features

Power Design Free Flow TriXX Supported TriXX Boost Red LED Logo Intelligent Fan Control Precision Fan Control Robust VRM Cooling Robust Memory Cooling Dual-X Cooling Technology Tough Metal Backplate PCB Layers Two-Ball Bearing Fan Quick Connect Fuse Protection Dual BIOS

System Requirement

Recommended 650 Watt Power Supply (Minimum 600 Watt Power Supply). 1 x 8-pin Power Connector. 1 x 6-pin Power Connector. PCI Express based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 8GB of system memory. 16GB recommended.
