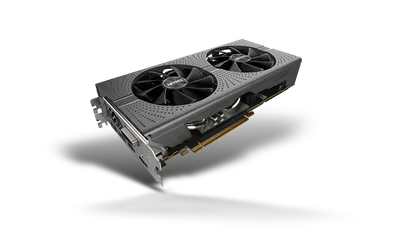

NITRO+ RX 580 8G G5 LE

TDP

235 W

CUDA-kärnor

2304

Minne

8 GB

Minnestyp

GDDR5

Max antal skärmar

5

Minneshastighet

8000 Gbps

Buss

PCIe 3.0 x16

Max upplösning

DisplayPort: 5120×2880@60Hz HDMI: 4096×2160@60Hz DVI:2560x1600@60Hz

Displayutgångar

2x HDMI 2.0b 2x DisplayPort 1.4 1x DL-DVI-D

Övriga specifikationer

OS

Windows 11, 10, Windows 7 64bit operating system required

API

OpenGL 4.5 OpenCL 2.0 DirectX 12 Shader Model 5.0

Game Index

1440p gaming

Cooler Type

Dual-X fans Two ball bearing

Form Factor

2.2 Slots Occupied 260X135X43 Dimension/mm

AMD Features

Radeon VR Ready Premium Radeon Software Radeon FreeSync Technology AMD LiquidVR Technology 4th Gen GCN Architecture Radeon Chill Radeon ReLive DirectX 12 Technology AMD Eyefinity Technology (Gaming) AMD App Acceleration AMD CrossFire Technology AMD CrossFire (Bridgeless) 3rd Gen 14nm Process Technology OpenCL 2.0 OpenGL 4.5 AMD PowerTune Technology TrueAudio Next Unified Video Decoder (UVD) Video Code Engine (VCE) Virtual Super Resolution The Vulkan API

BIOS Support

Dual UEFI

Sapphire Features

NITRO Fan Check NITRO Quick Connect System NITRO Glow RGB LED NITRO CoolTech(NCT) Intelligent Fan Control III Precision Fan Control Robust VRM Cooling Long Life Polymer Capacitor Fuse Protection Dual UEFI

System Requirement

500 Watt or greater power supply (Recommended) 1 x 8-pin Power Connector + 1 x 6-pin Power Connector PCI Express compliant motherboard with one x16 graphics slot
