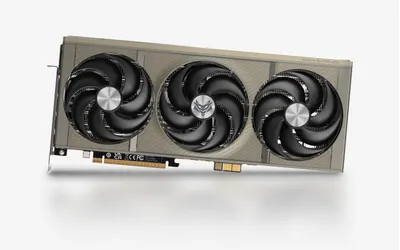

NITRO+ AMD Radeon™ RX 9070 XT OC PhantomLink Edition GPU

TDP

330 W

Bredd

141.25 mm

Höjd

65.68 mm

Längd

330.8 mm

Basklocka

2520 MHz

CUDA-kärnor

4096

Minnesbuss

256-bit

Boost-klocka

3060 MHz

Minne

16 GB

Minnestyp

GDDR6

Max antal skärmar

4

Minneshastighet

20 Gbps

Lanseringsår

2025

Arkitektur

RDNA 4

Buss

PCIe 5.0 x16

Max upplösning

HDMI 2.1b: 7680×4320 DisplayPort 2.1a: 7680×4320

Displayutgångar

2x HDMI 2.1b 2x DisplayPort 2.1a

Övriga specifikationer

OS

Linux, Windows 11. 64-bit operating system required

Game Index

4K

Cooler Type

Tri-X Cooling AeroCurve Fan Blade Free Flow Integrated Cooling Module High TG Copper PCB Optimized Composite Heatpipes Two-Ball Bearing

AMD Features

AMD RDNA 4 Architecture 64 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators) AMD HYPR-RX with AFMF 2 AMD FidelityFX Super Resolution Redstone with AI Upscaling DisplayPort 2.1a AMD Radiance Display Engine AMD Fluid Motion Frames 2 technology AMD Radeon Anti-Lag 2 technology AMD FidelityFX technologies Microsoft DirectX 12 Ultimate AMD Noise Suppression AMD Freesync technology 16 GB of GDDR6 on 256-bit Memory Bus AMD smart technologies AMD Software: Adrenalin Edition application

BIOS Support

UEFI

Compute Units

64 CUs (3rd Gen RT + 2nd Gen AI Accelerators)

AI Accelerator

128

Infinity Cache

64MB

Ray Accelerators

64

Sapphire Features

PhantomLink (GC-HPWR / BTF) Power Connector New TriXX Feature: Power Protection STEALTH Hidden Power Cable 12V-2x6(H++) External Power Connector (3x8-pin power adapter is also included if your PC's Power Supply Unit does not have 12V-2x6) Ultra-Thin Graphene Thermal Pad AeroCurve Fan Blade Free Flow FrameDefense Integrated Cooling Module Cold Rolled Steel Frame Tri-X Cooling Technology High TG Copper PCB Optimized Composite Heatpipes Metal Backplate ARGB Light Bar Fan Quick Connect Two-Ball Bearing Fans Premium 16-Phase Digital Power Design Fuse Protection Intelligent Fan Control Precision Fan Control TriXX Supported Performance vs. Efficiency Quicksets Glow! Fan Check TriXX Boost External RGB LED MB Synchronization
