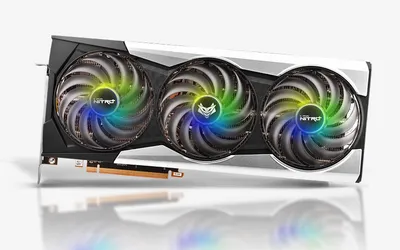

NITRO+ AMD Radeon™ RX 6900 XT SE

TDP

363 W

Bredd

134.85 mm

Höjd

58.4 mm

Längd

320 mm

Basklocka

2135 MHz

CUDA-kärnor

5120

Boost-klocka

2365 MHz

Minne

16 GB

Minnestyp

GDDR6

Max antal skärmar

4

Minneshastighet

16 Gbps

Lanseringsår

2020

Arkitektur

RDNA 2

Buss

PCIe 4.0 x16

Max upplösning

HDMI: 7680×4320 DisplayPort1.4: 7680×4320 USB-C: 7680×4320

Displayutgångar

1x HDMI 2x DisplayPort 1x USB-C

Övriga specifikationer

OS

Linux, Windows 7*, Windows 10, and Windows 11. 64-bit operating system required *Does not support all features including but not limited to Hardware Raytracing

Game Index

4K

Cooler Type

3 Fans

Form Factor

2.7 slot, ATX Dimension: 320(L)X 134.85(W)X 58.4 (H)mm

AMD Features

AMD RDNA 2 Gaming Architecture DirectX 12 Ultimate Hardware Raytracing 7nm GPU GDDR6 Memory PCI Express 4.0 Support AMD FreeSync Technology DisplayPort 1.4 with DSC HDMI Video Streaming up to 8K Radeon VR Ready Premium AMD FidelityFX Radeon Image Sharpening Radeon Anti-Lag Radeon Software Game Driver Optimizations High Performance 4K Gaming

BIOS Support

Dual UEFI

Infinity Cache

128MB

Ray Accelerators

80

Sapphire Features

Dual BIOS Max Boost TriXX Software Switch Premium Digital Power Design Fuse Protection Tri-X Cooling Technology Intelligent Fan Control Precision Fan Control Backplate with ARGB ARGB Fans Two-Ball Bearing Fans Hybrid Fan Blade Wave Fin Design V Shape Fin Design for GPU Cooling Integrated Cooling Module K6.5 Memory Pad TriXX Supported Fan Check Fan Quick Connect TriXX Boost NITRO Glow External RGB LED MB Synchronization
