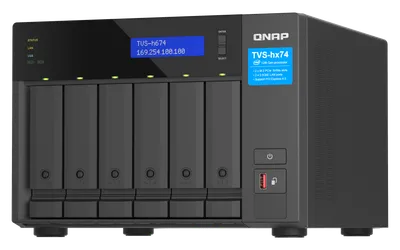

TVS-h674

Typ

NAS

Vikt

6.32 kg

Kylning

System fan: 2 x 92mm, 12VDC CPU fan: 1 x 60mm, 12VDC

M.2-platser

2

Kontroller

Intel Core i5-12400 6-core/12-thread Processor, burst up to 4.4 GHz

Dimensioner

180.2 264.3 279.6 mm Dimensions do not include foot pad (foot pad may be up to 30 mm / 1.18 inches high depending on model)

3.5"-fack

6

Ethernet-portar

2

Värdanslutning

Ethernet

Diskgränssnitt

SATA + M.2 NVMe

Max Ethernet-hastighet

2.5 Gbps

Övriga specifikationer

Buttons

Power, Reset, USB Copy

PCIe Slot

2 Slot 1: PCIe Gen 4 x16 Slot 2: PCIe Gen 4 x4 Card dimensions for PCIe slot 1~Slot 2：185 x 111.15 x 18.76 mm / 7.28 x 4.38 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used.

Form Factor

Tower

HDMI Output

1, HDMI 1.4b (up to 4096 x 2160 @ 30Hz)

Jumbo Frame

Yes

Memory Slot

2 x SODIMM DDR4

Flash Memory

5GB (Dual boot OS protection)

Hot-swappable

(Not supported M.2 SSD)

System Memory

32 GB SODIMM DDR4

LED Indicators

HDD 1-6, Status, LAN, USB port, M.2 port

Maximum Memory

64 GB ( 2 x 32 GB)
