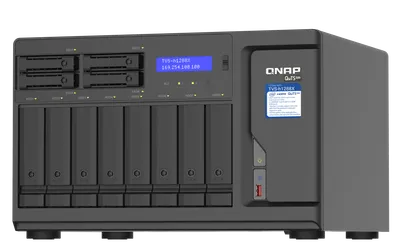

TVS-h1288X

Typ

NAS

Vikt

13.29 kg

Kylning

System fan: 3 x 80mm, 12VDC CPU fan: 2 x 97mm, 12VDC

M.2-platser

2

Kontroller

Intel Xeon W-1250 6-core/12-thread processor, up to 4.7 GHz

Dimensioner

225.2 369.9 319.8 mm Dimensions do not include foot pad (foot pad may be up to 30 mm / 1.18 inches high depending on model)

2.5"-fack

4

3.5"-fack

8

Ethernet-portar

12

Värdanslutning

Ethernet

Diskgränssnitt

SATA + M.2 NVMe

Max Ethernet-hastighet

10 Gbps

Övriga specifikationer

Buttons

Power, Reset, USB Auto Copy

PCIe Slot

3 Slot 1: PCIe Gen3 x8 Slot 2: PCIe Gen3 x4 Slot 3: PCIe Gen3 x4 *Slot 1 is preinstalled with a 2-port 10GbE network adapter. Card dimensions for PCIe slot 1：260 x 111.15 x 37.52 mm / 10.25 x 4.38 x 1.48 inches. Card dimensions for PCIe slot 2：150 x 68.9 x 18.76 mm / 5.90 x 2.71 x 0.74 inches. Card dimensions for PCIe slot 3：150 x 68.9 x 18.76 mm / 5.90 x 2.71 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used.

Audio Input

- (No longer available on units manufactured on or after 2021/1/1)

Form Factor

Tower

HDMI Output

1, HDMI 1.4b (up to 4096 x 2160 @ 30Hz)

Jumbo Frame

Yes

Memory Slot

4 x UDIMM DDR4 For dual-DIMM configurations, you must use a pair of identical DDR4 modules.

Audio Output

- (The line out jack and speaker are no longer available on units manufactured on or after 2021/1/1)

Flash Memory

5GB (Dual boot OS protection)

Hot-swappable

(Not supported M.2 SSD)
