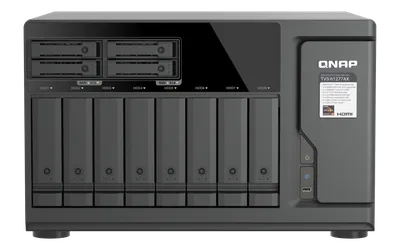

TVS-h1277AX

Typ

NAS

Vikt

10.98 kg

Kylning

System fan: 3 x 80mm, 12VDC CPU fan: 2 x 60 mm, 12V DC

U.2-platser

8

Kontroller

AMD Ryzen 5 7000 series 6-core/12-thread processor, burst up to 5.1 GHz AMD Radeon Graphics

Dimensioner

225.2 369.9 319.8 mm

2.5"-fack

4

3.5"-fack

8

Ethernet-portar

12

Värdanslutning

Ethernet

Diskgränssnitt

SATA + U.2 NVMe

Max Ethernet-hastighet

10 Gbps

Övriga specifikationer

Buttons

Power, Reset, USB Auto Copy

PCIe Slot

3 Slot 1: Gen 4 x 8 or Gen 4 x 4* Slot 2: Gen 4 x 4 Slot 3: Gen 4 x 4 *Slot 1 provides the width of PCIe Gen4 x8 when Slot 2 is not in use, and provides the width of PCIe Gen4 x4 when Slot 2 is in use. Card dimensions for PCIe slot 1：268 x 112 x 40.64(dual slot) mm / 10.5 x 4.4 x 1.6 inches Card dimensions for PCIe slot 2：150 x 68.9 x 18.76 mm / 5.90 x 2.71 x 0.74 inches. Card dimensions for PCIe slot 3：150 x 68.9 x 18.76 mm / 5.90 x 2.71 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used.

Form Factor

Tower

HDMI Output

1, HDMI 1.4b (up to 4096 x 2160 @ 30Hz)

Jumbo Frame

Yes

Memory Slot

4 x UDIMM DDR5 Support optional ECC memory For dual-DIMM configurations, you must use a pair of identical DDR5 modules.

Flash Memory

5GB (Dual boot OS protection)

USB 2.0 port

2

Hot-swappable

To enable hot-swap functionality of U.2 SSDs after system startup, the U.2 SSD must be installed before powering on the system.
