QNAP

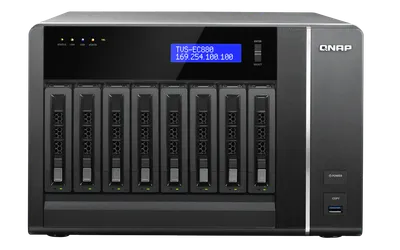

TVS-EC880

Name: TVS-EC880
Brand: QNAP

Art.nr: TVS-EC880

Specifikationer

Produktsida

Typ: NAS
Vikt: 12.52 kg
Kylning: 2 x 12 cm smart cooling fan
Kontroller: Intel Xeon E3-1245 v3 3.4 GHz Quad Core Processor or above
Dimensioner: 217.5 (H) 327 (W) 321.2(D) mm 8.56 (H) 12.8 (W) 12.65(D) inch
3.5"-fack: 8
Ethernet-portar: 3
Värdanslutning: Ethernet
Max Ethernet-hastighet: 10 Gbps

Övriga specifikationer

1.: LED Indicators: Status, LAN, USB, eSATA, 10 GbE, LAN 10. PCIe Slot x1
2.: HDD Status LED 11. USB 2.0 Port x6
3.: Select Button 12. Password & Network Settings Reset Button
4.: Enter Button 13. HDMI x1
5.: Tray Lock 14. USB 3.2 Gen 1 Port x2
6.: Tray Release Button 15. K-Lock Security Slot
7.: One Touch Copy Button/ USB 3.2 Gen 1 Port 16. Gigabit LAN Port x4
8.: Power Button 17. Power Connector
9.: eSATA Port x2
USB: 3x USB 3.2 Gen 1 port (1 front, 2 rear) 6x USB 2.0 port (rear) Support USB printer, pen drive, USB hub, and USB UPS etc.
Memory: TVS-EC880-E3-8G: System memory: 8 GB DDR3 RAM (non-ECC Memory) Memory module pre-installed: 4 GB x2 Total memory slots: 4 Memory expandable up to: 32 GB (8GB x4) Note: When upgrading RAM to more than 24GB, the original 4GB RAM modules must be removed. TVS-EC880-E3-16G: System memory: 16 GB DDR3 RAM (non-ECC Memory) Memory module pre-installed: 8 GB x2 Total memory slots: 4 Memory expandable up to: 32 GB (8GB x4) Note: For the information of RAM module installation and compatible NAS models, please refer to the QNAP RAM Module Installation Guide

Priser hos återförsäljare

Butik	Logotyp	Pris	Lager
Inga aktuella priser tillgängliga.

Recensioner

Laddar recensioner…

Buttons

System: Power button and reset button

LAN Port

4 x Gigabit RJ-45 Ethernet port (Expandable up to 6 x 1 Gb LAN or 2 x 10 Gb + 4 x 1 Gb LAN by installing optional dual-port 10 Gb and 1 Gb network card) Note: 1. For the optional network card compatibility list, please visit Compatibility list 2. For the information of network card installation, please refer to chapter 6 in the Turbo NAS Hardware Manual.

PCIe Slot

1 (1* PCIe Gen3 x8)

TVS-EC880

Gigabit network cable x 4 Power cord x 1

Hard Drive

8 x 3.5-inch SATA 6Gbps/3Gbps hard drive or 2.5-inch SATA, 6Gbps/3Gbps hard drive SSD hard drive NOTE: The standard system is shipped without hard drives. For the hard drive compatibility list, please visit www.qnap.com/compatibility

Alarm Buzzer

System warning

Flash Memory

512MB DOM

Power Supply

Input: 100-240V AC, 50/60Hz, Output: 350W

LED Indicators

Status, LAN, USB, eSATA and 10 GbE,

Hard Drive Tray

8 x hot-swappable and lockable tray

Sound Level (dB)

Standby: 30.3 dB In operation: 31.2 dB (with 8 x 1TB hard drives installed)

Relative Humidity

5~95% non-condensing, wet bulb: 27˚C.

Internal Cache Port

Two mSATA port on board for read caching Note: The standard system is shipped without mSATA flash. For the optional mSATA flash, please visit http://shop.qnap.com/

Power Consumption (W)

Sleep mode: 68W In Operation: 130W (with 8 x 1TB hard drives installed)

Multi-window, Multi-tasking based System Management Movable Icons and Personalized Desktop Smart Toolbar and Dashboard for Neat Display on System Status Smart Fan Control Dynamic DNS (DDNS) SNMP (v2 & v3) Resource Monitor Network Recycle Bin for File Deletion via CIFS/SMB and AFP Automatic Cleanup File Type Filter Comprehensive Logs (Events & Connection) Syslog Client Firmware Live Update System Settings Backup and Restore Restore to Factory Default Mobile App Qmanager for Remote Monitoring

Yes
