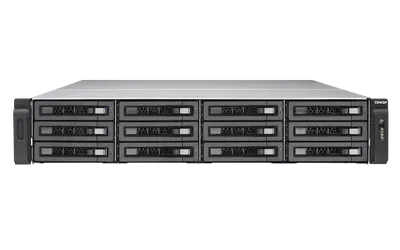

TVS-EC1280U-SAS-RP

Typ

NAS

Vikt

14.18 kg

Kylning

4 x 6 cm smart cooling fan

Kontroller

Intel Xeon E3-1246 v3 Family 3.5 GHz Quad-core Processor

Dimensioner

88 (H) 442.5 (W) 530.5(D) mm 3.46 (H) 17.42 (W) 20.89(D) inch

3.5"-fack

12

Ethernet-portar

2

Värdanslutning

Ethernet

Diskgränssnitt

SAS

Max Ethernet-hastighet

10 Gbps

Övriga specifikationer

2.

LED Indicators: 10 GbE, Status, LAN, Storage Expansion Port Status 8. 12G mini SAS connector

4.

USB 2.0 Port x 4 10. PCIe slot x 2 (Left slot: 1* PCIe Gen3 x8; Right slot: 1* PCIe Gen3 x4)

5.

Gigabit LAN x 4 11. BBU (Reserved)

6.

USB 3.2 Gen 1 Port x 4 12. Power Connector

USB

4x USB 3.2 Gen 1 port (rear) 4x USB 2.0 port (rear) Support USB printer, pen drive, USB hub, and USB UPS etc.

Memory

TVS-EC1280U-SAS-RP-16G System memory: 16GB DDR3 non-ECC RAM Memory module pre-installed: 8 GB x2 Total memory slots: 4 Memory expandable up to: 32 GB (8GB x4) TVS-EC1280U-SAS-RP-8GE System memory: 8 GB DDR3 ECC RAM Memory module pre-installed: 4 GB x2 Total memory slots: 4 Memory expandable up to: 32 GB (8GB x4) Note: ECC RAM and non-ECC RAM cannot be used at the same time in the NAS. For the information of RAM module installation and compatible NAS models, please refer to the QNAP RAM Module Installation Guide

Buttons

System: Power button and reset button

LAN Port

4 x Gigabit RJ-45 Ethernet port (Expandable up to 8 x 1 Gb LAN or 4 x 10 Gb + 4 x 1 Gb LAN by installing optional dual-port 10 Gb and 1 Gb network card) Note: 1. For the optional network card compatibility list, please visit Compatibility list 2. For the information of network card installation, please refer to chapter 6 in the Turbo NAS Hardware Manual.
