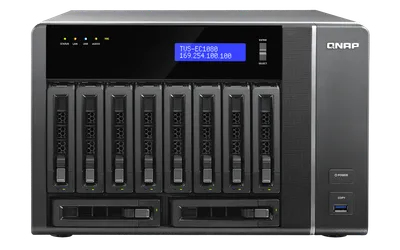

TVS-EC1080

Typ

NAS

Vikt

12.52 kg

Kylning

2 x 12 cm smart cooling fan

Kontroller

TVS-EC1080-E3-16G：Intel Xeon E3-1245 v3 3.4 GHz Quad Core Processor or above TVS-EC1080-E3-8G：Intel Xeon E3-1245 v3 3.4 GHz Quad Core Processor or above TVS-EC1080-i3-8G：Intel Core i3-4150 3.5 GHz Dual Core processor

Dimensioner

217.5 (H) 327 (W) 321.2(D) mm 8.56 (H) 12.8 (W) 12.65(D) inch

3.5"-fack

10

Ethernet-portar

3

Värdanslutning

Ethernet

Max Ethernet-hastighet

10 Gbps

Övriga specifikationer

1.

LED Indicators: Status, LAN, USB, eSATA, 10 GbE, LAN 10. PCIe Slot x1

2.

HDD Status LED 11. USB 2.0 Port x6

3.

Select Button 12. Password & Network Settings Reset Button

4.

Enter Button 13. HDMI x1

5.

Tray Lock 14. USB 3.2 Gen 1 Port x2

6.

Tray Release Button 15. K-Lock Security Slot

7.

One Touch Copy Button/ USB 3.2 Gen 1 Port 16. Gigabit LAN Port x4

8.

Power Button 17. Power Connector

9.

eSATA Port x2

USB

3x USB 3.2 Gen 1 port (1 front, 2 rear) 6x USB 2.0 port (rear) Support USB printer, pen drive, USB hub, and USB UPS etc.

Memory

TVS-EC1080-E3-8G: System memory: 8 GB DDR3 RAM (non-ECC Memory) Memory module pre-installed: 4 GB x2 Total memory slots: 4 Memory expandable up to: 32 GB (8GB x4) Note: When upgrading RAM to more than 24GB, the original 4GB RAM modules must be removed. TVS-EC1080-E3-16G: System memory: 16 GB DDR3 RAM (non-ECC Memory) Memory module pre-installed: 8 GB x2 Total memory slots: 4 Memory expandable up to: 32 GB (8GB x4) TVS-EC1080-i3-8G: System memory: 8 GB DDR3 RAM (non-ECC Memory) Memory module pre-installed: 4 GB x2 Total memory slots: 4 Memory expandable up to: 32 GB (8GB x4) Note: When upgrading RAM to more than 24GB, the original 4GB RAM modules must be removed. Note: For the information of RAM module installation and compatible NAS models, please refer to the QNAP RAM Module Installation Guide
