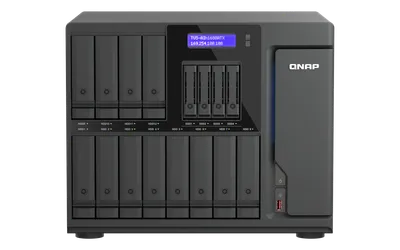

TVS-AIh1688ATX

Typ

NAS

Vikt

13.8 kg

Kylning

System fan: 3 x 80mm, 12VDC CPU fan: 2 x 97mm, 12VDC

U.2-platser

12

Kontroller

Intel Core Ultra 9, 24 (8P+16E) core, 24 Threads, up to 5.6GHz

Dimensioner

294.3 369.89 319.8 mm

2.5"-fack

4

3.5"-fack

12

Ethernet-portar

12

Värdanslutning

Ethernet

Diskgränssnitt

SATA + U.2 NVMe

Max Ethernet-hastighet

10 Gbps

Övriga specifikationer

Buttons

Power, Reset, USB Auto Copy

PCIe Slot

3 Slot 1: PCIe Gen4 x16 Slot 2: PCIe Gen4 x4 Slot 3: PCIe Gen4 x4 Card dimensions for PCIe slot 1：260 x 111.15 x 37.52 mm / 10.25 x 4.38 x 1.48 inches. Card dimensions for PCIe slot 2：150 x 68.9 x 18.76 mm / 5.90 x 2.71 x 0.74 inches. Card dimensions for PCIe slot 3：150 x 68.9 x 18.76 mm / 5.90 x 2.71 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used."

USB 4 port

2 x USB4 Type-C

Form Factor

Tower

HDMI Output

1, HDMI 2.1 (up to 4096 x 2160 @ 60Hz)

Jumbo Frame

Yes

Memory Slot

4 x UDIMM DDR5 For dual-DIMM configurations, you must use a pair of identical DDR5 modules.

Flash Memory

5GB (Dual boot OS protection)

Hot-swappable

Yes

System Memory

48GB ECC UDIMM DDR5

LED Indicators
