Intel Core i5-6442EQ 4-core 1.9 GHz processor (burst up to 2.7 GHz)
Dimensioner
177
180
235 mm
2.5"-fack
8
3.5"-fack
8
Ethernet-portar
11
Värdanslutning
Ethernet
Diskgränssnitt
SATA
Max Ethernet-hastighet
10 Gbps
Övriga specifikationer
Buttons
Power, Reset, USB Auto Copy
IR Sensor
(RM-IR004 & MCE)
PCIe Slot
2 Slot 1: PCIe Gen 3 x8 Slot 2: PCIe Gen 3 x4 Pre-installed with a Thunderbolt 3 adapter and a 10GbE adapter

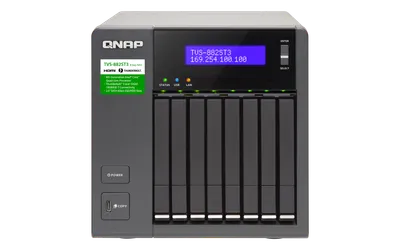

TVS-882ST3
Ethernet Cable x 2 Power Cord x 1
Audio Input
1 x 3.5mm dynamic microphone input jacks
Form Factor
Tower
HDMI Output
1, (up to 3840 x 2160 @ 30Hz)
Jumbo Frame
Yes
Memory Slot
2 x SODIMM DDR4 For dual-DIMM configuration, you must use a pair of identical DDR4 modules.
Audio Output
1 x 3.5mm line out jack (for amplifier or headphone amplifier)
Flash Memory
512 MB (Dual boot OS protection)
Priser hos återförsäljare
Butik
Logotyp
Pris
Lager
Inga aktuella priser tillgängliga.
Recensioner
Laddar recensioner…
Hot-swappable
(Not supported M.2 SSD)
System Memory
8 GB SODIMM DDR4
LED Indicators
Power/Status, LAN, USB, HDD1-8
Maximum Memory
32 GB (2 x 16 GB)
System Warning
Buzzer
Weight (Gross)
4.65 kg
CPU Architecture
64-bit x86
Other Interfaces
Maintenance port
Thunderbolt Port
2 (Thunderbolt 3) Supports only Thunderbolt connections for Windows & Mac hosts and USB storage devices. Third-party Thunderbolt external storage devices are not supported.
Encryption Engine
(AES-NI)
Power Supply Unit
ATX 250W, Input: 100V-240V ~ / 3.5A, 47Hz-63Hz
Relative Humidity
5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Graphic Processors
Intel HD Graphics
USB 3.2 Gen 1 port
2
LCD Display/ Button
(Mono-LCD display with backlight, Enter and Select buttons for configuration)
Storage Temperature
-20 - 70°C (-4°F - 158°F)
Operating Temperature
0 - 40 °C (32°F - 104°F)
Kensington Security Slot
Yes
USB 3.2 Gen 2 (10Gbps) Port
1 x Type-C USB 3.2 Gen 2 10Gbps 1 x Type-A USB 3.2 Gen 2 10Gbps
Gigabit Ethernet Port (RJ45)
2 Expandable with an optional PCIe adapter
SSD Cache Acceleration Support
Yes
Hardware-accelerated Transcoding
Yes
Power Consumption: Disk Standby Mode
26.36 W
Power Consumption: Operating Mode, Typical
43.43 W
Max. Number of Concurrent Connections (CIFS) - with Max. Memory
