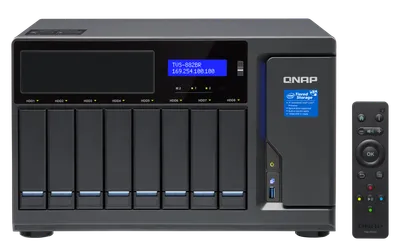

TVS-882BR | PrisHunden- Typ
- NAS
- Vikt
- 11.23 kg
- Kylning
- System fan: 3 x 80mm CPU fan: 1 x 90mm
- M.2-platser
- 2
- Kontroller
- Intel Core i7-7700 4-core 3.6 GHz processor, Max turbo to 4.2 GHz
- Dimensioner
- 234.6
369.9
319.8 mm
- 3.5"-fack
- 8
- Ethernet-portar
- 5
- Värdanslutning
- Ethernet
- Diskgränssnitt
- SATA + M.2
- Max Ethernet-hastighet
- 1 Gbps
Övriga specifikationer
- Buttons
- Power, Reset, USB Auto Copy
- IR Sensor
- Yes
- PCIe Slot
- 3 Slot 1: PCIe Gen 3 x8 Slot 2: PCIe Gen 3 x4 Slot 3: PCIe Gen 3 x4
- TVS-882BR
- Ethernet cable x 4 Quick installation guide (QIG)
- Audio Input
- 2 x 6.3mm dynamic microphone input jacks
- Form Factor
- Tower
- HDMI Output
- 3, HDMI 1.4b
- Jumbo Frame
- Yes
- Memory Slot
- 4 x UDIMM DDR4
- Audio Output
- 2 x built-in speaker, 1 x 3.5mm line out jack (for amplifiers or speakers)
- Flash Memory
- 512MB (DOM for dual OS)
- Hot-swappable
- (Not supported M.2 SSD)
Priser hos återförsäljare
| Butik | Logotyp | Pris | Lager | |
|---|
| Inga aktuella priser tillgängliga. |
Recensioner
Laddar recensioner…
System Memory32 GB UDIMM DDR4 LED IndicatorsSystem status, M.2 SSD, 3.5” HDD Maximum Memory64 GB (4 x 16 GB) Power cord x 1Screws for M.2 installation: 2 x screw + 2 x bolt Flat head screw x 24 (for 2.5” HDD) CPU Architecture64-bit x86 Encryption Engine(AES-NI) Power Supply UnitInput: 100-240V~, 3-1.5A, 60-50Hz; Output: 250W Relative Humidity5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) Graphic Processors9th-generation Intel HD Graphics Storage Temperature-20 - 70°C (-4°F - 158°F) M.2 SSD Heatsink x 2IR Remote Control: RM-IR004 Operating Temperature0 - 40 °C (32°F - 104°F) 5.25-inch Expansion Bay1 x 5.25” disc burner or 2 x slim SATA disc burners Kensington Security SlotYes USB 3.2 Gen 2 (10Gbps) Port(Optional) Power Consumption: Power Off63.816 W SSD Cache Acceleration SupportYes Hardware-accelerated TranscodingYes Power Consumption: Disk Standby Mode33.083 W Power Consumption: Operating Mode, Typical63.816 W Tested fully populated with WD10EFRX hard drives, TS128GMTS800 M.2 solid-state drives ,and Optical Disc Drive. Max. Number of Concurrent Connections (CIFS) - with Max. Memory5000
