AMD R-Series RX-421BD quad-core 2.1 GHz processor, burst up to 3.4 GHz
3.5"-fack
8
Ethernet-portar
5
Värdanslutning
Ethernet
Diskgränssnitt
SATA + M.2
Max Ethernet-hastighet
1 Gbps
Övriga specifikationer
USB
2 x USB 3.2 Gen 2 Gen2 port, and 4 x USB 3.2 Gen 1 Type-A port
HDMI
2, up to 3840 x 2160 @ 30Hz resolution
Power
250W, 100-240V AC, 50-60Hz, 3.5A
Button
Power/Status, USB one-touch-backup, Reset
Others
Kensington security slot, system maintenance port

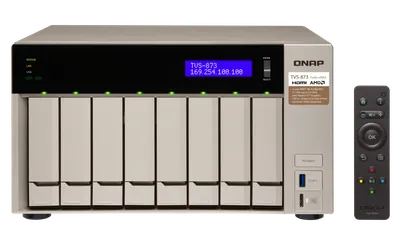

TVS-873
Ethernet Cable x 2 Quick Installation Guide (QIG)
Graphics
Embedded Radeon R7 Graphics Processor
LCD Panel
Mono-LCD display with backlight, Enter and Select buttons for configuration
PCIe Slot
2 x PCIe Gen 3 (x4), one slot is pre-installed with a dual-port USB 3.2 Gen 2 Type-A card
Form Factor
Tower
IR Receiver
Yes, support QNAP RM-IR004 and MCE-compatible remotes
Priser hos återförsäljare
Butik
Logotyp
Pris
Lager
Inga aktuella priser tillgängliga.
Recensioner
Laddar recensioner…
Memory Slot
4 x SODIMM DDR4 (For dual- or quad-DIMM configurations, you must use a pair of identical DDR4 modules.)
Flash Memory
512MB DOM
LED Indicator
Status/Power, USB, LAN, Drive 1-8, M.2 SSD 1-2
System Memory
TVS-873-64G: 64GB DDR4 (4 x 16GB) TVS-873-16G: 16GB DDR4 (2 x 8GB) TVS-873-8G: 8GB DDR4 (2 x 4GB)
Maximum Memory
64GB
Power Cord x 1
Flat head screw (for M.2 SSD) Flat head screw x 24 (for 2.5" HDD)
Hard Disk Drive
8 x 3.5"/2.5" SATA 6Gb/s HDDs/SSDs
Relative Humidity
5~95% RH non-condensing, wet bulb: 27˚C
M.2 SSD Heatsink x 2
Infrared (IR) Remote Control: RM-IR004
Power Consumption(W)
HDD standby: 36.43W In operation: 70.26W (with 8 x 2TB HDDs installed)
Dimension (H x W x D)
188.2 x 329.3 x 279.6 mm 7.41 x 12.96 x 11.01 inch
Operating Temperature
0 ~ 40˚C
Hardware Encryption Acceleration
Yes, AES-NI
TCP/IP (IPv4 & IPv6: Dual Stack)1 Quad Gigabit NICs with jumbo frame (failover, multi-IP settings, port trunking/NIC teaming) Service binding based on network interfaces Squid Proxy server Proxy client DHCP client, DHCP server Protocols: CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC UPnP & Bonjour Discovery USB Wi-Fi Adapter Support
Yes
Use the NAS as a HTPC. Enjoy videos, music, photos on TV via HDMI , including online content from Flickr, Picasa, Shoutcast, and more. Web browsers (Chrome, Firefox) Supports international keyboards, input and mouse Supports user login permissions A variety of applications are available including Skype, Plex Home Theater, and more Note: - The playback and quality of some video files may be affected by the system's CPU and GPU decoding abilities.
Yes
TCP/IP (IPv4 & IPv6: Dual Stack)1 Quad Gigabit NICs with jumbo frame (failover, multi-IP settings, port trunking/NIC teaming) DHCP client, DHCP server USB Wi-Fi Adapter Support Virtual Switch Supports editing the Virtual Switches in Virtualization station. Supports combining virtual machines and containers to the same Virtual Switch. Supports NAT (Network Address Translation). Supports STP (Spanning Tree Protocol). Supports Thunderbolt Residential Gateway. USB QuickAccess WirelessAP
Yes
Find QNAP NAS that are on the same local network as your PC. Easily mount NAS shared folders. Configure basic settings for the NAS including firmware updates, setting SMTP server, and changing network settings. Supports direct connection with USB QuickAccess. Storage Plug & Connect (Windows only). - Create and map NAS shared folders. - Create and connect to iSCSI target/LUNs. Media Upload (Windows only). - Upload media files to the NAS and automatically create thumbnails or transcode videos using the PC.
