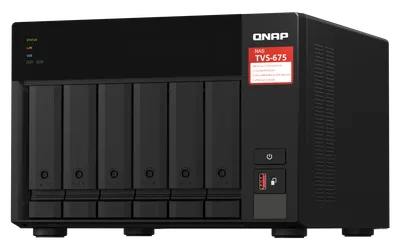

TVS-675

Typ

NAS

Vikt

7 kg

Kylning

3 x 80mm, 12VDC

M.2-platser

2

Kontroller

ZhaoXin KX-U6580 8-core 2.5GHz processor

Dimensioner

180.2 264.3 279.6 mm Dimensions do not include foot pad (foot pad may be up to 30 mm / 1.18 inches high depending on model)

3.5"-fack

6

Ethernet-portar

2

Värdanslutning

Ethernet

Diskgränssnitt

SATA + M.2 NVMe

Max Ethernet-hastighet

2.5 Gbps

Övriga specifikationer

Buttons

Power, Reset, USB Copy

PCIe Slot

2 Slot 1: PCIe Gen 3 x4 Slot 2: PCIe Gen 3 x4 Card dimensions for PCIe slot 1~Slot 2：190 x 111.15 x 18.76 mm / 7.48 x 4.38 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used.

Form Factor

Tower

HDMI Output

1, HDMI 2.0 (up to 3840 x 2160 @ 60Hz)

Jumbo Frame

Yes

Memory Slot

2 x SODIMM DDR4 For dual-DIMM configuration, you must use a pair of identical DDR4 modules.

Flash Memory

5GB (Dual boot OS protection)

Hot-swappable

(Not supported M.2 SSD)

System Memory

8 GB SODIMM DDR4

LED Indicators

HDD 1-6, Status, LAN, USB, M.2 SSD 1-2

Maximum Memory

64GB (2 x 32 GB)
