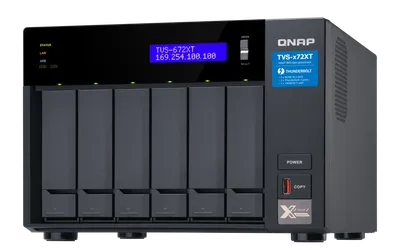

TVS-672XT

Typ

NAS

Vikt

7.89 kg

Kylning

System fan: 2 x 92mm, 12VDC CPU fan: 2 x 60mm blower fan

M.2-platser

2

Kontroller

Intel Core i5 Processor

Dimensioner

180.2 264.3 279.6 mm Dimensions do not include foot pad (foot pad may be up to 30 mm / 1.18 inches high depending on model)

3.5"-fack

6

Ethernet-portar

13

Värdanslutning

Ethernet

Diskgränssnitt

SATA + M.2 NVMe

Max Ethernet-hastighet

10 Gbps

Övriga specifikationer

Buttons

Power, Reset, USB Copy

IR Sensor

(QNAP RM-IR004 & MCE)

PCIe Slot

2 Slot 1: PCIe Gen 3 x16 (CPU) Slot 2: PCIe Gen 3 x4 (PCH) Slot 1 is preinstalled with a Thunderbolt 3 adapter Card dimensions for PCIe slot 1~Slot 2：210 x 111.15 x 18.76 mm / 8.26 x 4.38 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used.

Audio Input

- (No longer available on units manufactured on or after 2021/1/1)

Form Factor

Tower

HDMI Output

1, HDMI 2.0 (up to 3840 x 2160 @ 60Hz)

Jumbo Frame

Yes

Memory Slot

2 x SODIMM DDR4

Audio Output

- (The line out jack and speaker are no longer available on units manufactured on or after 2021/1/1)

Flash Memory

5GB (Dual boot OS protection)

Hot-swappable

(Not supported M.2 SSD)
