44 (H)
439 (W)
499 (D) mm 1.732 (H)
17.28 (W)
19.64 (D) inch
3.5"-fack
4
Ethernet-portar
1
Värdanslutning
Ethernet
Övriga specifikationer
1.
LED Indicators: 10 GbE, Status, LAN, Storage Expansion Port Status 6. USB 3.2 Gen 1 Port x 4
4.
USB 2.0 Port x 4 9. Power Connector
5.
Gigabit LAN x 4
DRAM
TVS-471U-RP-PT-4G / TVS-471U-RP-i3-4G System memory: 4 GB DDR3 RAM Memory module pre-installed: 4 GB x1 Total memory slots: 4 Memory expandable up to: 32 GB (8GB x4) Note: When upgrading RAM to more than 28GB, the original 4GB RAM modules must be removed. For the information of RAM module installation and compatible NAS models, please refer to the QNAP RAM Module Installation Guide
HDMI
1
Buttons
System: Power button and reset button
LAN Port
4 x Gigabit RJ-45 Ethernet port (Expandable up to 6 x 1 Gb LAN or 2 x 10 Gb + 4 x 1 Gb LAN by installing optional dual-port 10 Gb and 1 Gb network card) Note: 1. For the optional network card compatibility list, please visit https://www.qnap.com/compatibility/ 2. For the information of network card installation, please refer to chapter 6 in the Turbo NAS Hardware Manual.
PCIe Slot
1 (PCIe Gen3 x4)
USB/eSATA
4x USB 3.2 Gen 1 port (rear) 4x USB 2.0 port (rear) Support USB printer, pen drive, USB hub, and USB UPS etc. .
Priser hos återförsäljare
Butik
Logotyp
Pris
Lager
Inga aktuella priser tillgängliga.
Recensioner
Laddar recensioner…
Hard Drive
4 x 3.5-inch SATA 6Gb/s, SATA 3Gb/s hard drive or 2.5-inch SATA, SSD hard drive NOTE: 1. The standard system is shipped without hard drives. 2. For the hard drive compatibility list, please visit https://www.qnap.com/compatibility/
Form Factor
1U, Rackmount

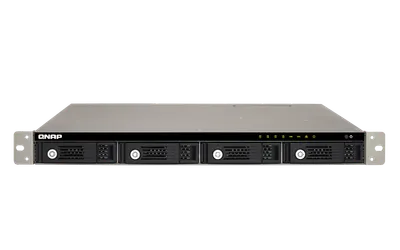

TVS-471U-RP
Ethernet cable x 4 Power cord x 2
Temperature
0~40˚C
Alarm Buzzer
System warning
Flash Memory
512MB DOM
Power Supply
Input: 100-240V AC, 47-63Hz Output: 250W
Sound Level*
Sound pressure (LpAm): 42.1 dB(A)
Hard Disk Tray
4 x hot-swappable and lockable tray
LED Indicators
Status, 10 GbE, LAN, storage expansion port status
Relative Humidity
5~95% non-condensing, wet bulb: 27˚C.
Internal Cache Port
Two mSATA port on board for read caching Note: The standard system is shipped without mSATA flash module. For the optional mSATA flash module, please visit http://shop.qnap.com/
Power Consumption (W)
HDD Standby: TVS-471U-RP-PT-4G: 57.25 TVS-471U-RP-i3-4G: 56.60 In Operation: TVS-471U-RP-PT-4G: 66.00 TVS-471U-RP-i3-4G: 65.88 (with 4 x WD WD30EFRX hard drive installed)
TCP/IP: IPv4 & IPv6(1) Multiple NICs with Jumbo Frame (Failover, Multi-IP Settings, Port Trunking/NIC Teaming ) Service Binding Based on Network Interfaces Proxy Client, Proxy Server DHCP Client, DHCP Server NTP Server** Protocols: CIFS/SMB, SMB2.1**, SMB3.0 (Encryption only)**, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC UPnP & Bonjour Discovery USB Wi-Fi Adapter Support
Yes
Multi-window, Multi-tasking based System Management Movable Icons and Personalized Desktop Smart Toolbar and Dashboard for Neat Display on System Status Login Screen with Personalized Photo-wall Style Smart Fan Control Dynamic DNS (DDNS) SNMP (v2 & v3) Resource Monitor Network Recycle Bin for File Deletion via CIFS/SMB, AFP and File Station - Automatic Cleanup - File Type Filter Comprehensive Logs (Events & Connection) Syslog Client/Server System Settings Backup and Restore Restore to Factory Default Mobile App: Qmanager for Remote System Monitoring & Management
