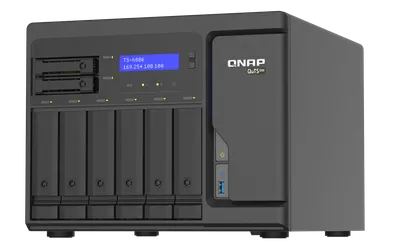

TS-h886

Typ

NAS

Vikt

10 kg

Kylning

System fan: 2 x 80mm, 12VDC CPU fan: 1 x 90mm, 12VDC

M.2-platser

2

Kontroller

Intel Xeon D-1622 4-core/8-thread processor, up to 3.2 GHz

Dimensioner

225 292.9 319.8 mm Dimensions do not include foot pad (foot pad may be up to 30 mm / 1.18 inches high depending on model)

2.5"-fack

2

3.5"-fack

6

Ethernet-portar

2

Värdanslutning

Ethernet

Diskgränssnitt

SATA + M.2 NVMe

Max Ethernet-hastighet

2.5 Gbps

Övriga specifikationer

SR-IOV

Yes

Buttons

Power, Reset, USB Auto Copy

PCIe Slot

2 Slot 1: PCIe Gen3 x8 Slot 2: PCIe Gen3 x8 Card dimensions for PCIe slot 1：260 x 111.15 x 37.52 mm / 10.25 x 4.38 x 1.48 inches. Card dimensions for PCIe slot 2：150 x 68.9 x 37.52 mm / 5.90 x 2.71 x 1.48 inches.

Form Factor

Tower

Jumbo Frame

Yes

Memory Slot

4 x UDIMM DDR4 For dual-DIMM configurations, you must use a pair of identical DDR4 modules.

Flash Memory

5GB (Dual boot OS protection)

Hot-swappable

(Not supported M.2 SSD)

System Memory

16 GB UDIMM DDR4 ECC

LED Indicators

System status, LAN, USB, Disk 1~8, M.2 SSD 1~2

Maximum Memory

128 GB (4 x 32 GB)
