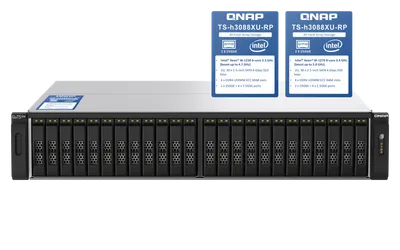

TS-h3088XU-RP

Typ

NAS

Vikt

16.93 kg

Kylning

3 x 60mm, 12VDC

Kontroller

Intel Xeon W-1270 8-core/16-thread processor, up to 5.0 GHz

Dimensioner

88.3 442.6 485.1 mm Excludes ear hook and the protruding part of the Power Supply Unit.

2.5"-fack

24

3.5"-fack

30

Ethernet-portar

4

Värdanslutning

Ethernet

Diskgränssnitt

SATA

Max Ethernet-hastighet

25 Gbps

Övriga specifikationer

Buttons

Power, Reset

PCIe Slot

3 Slot 1: PCIe Gen3 x8 or x4 Slot 2: PCIe Gen3 x4 Slot 3: PCIe Gen3 x4 *Slot 1 is preinstalled with a 25GbE network adapter. Please reserve this slot for the 25GbE adapter for the best performance. **Slot 1 provides the width of PCIe Gen3 x8 when Slot 2 is not in use, and provides the width of PCIe Gen3 x4 when Slot 2 is in use. Card dimensions for PCIe slot 1：200 x 68.9 x 28.76 mm / 7.87 x 2.71 x 1.13 inches. Card dimensions for PCIe slot 2：200 x 68.9 x 18.76 mm / 7.87 x 2.71 x 0.74 inches. Card dimensions for PCIe slot 3：200 x 68.9 x 18.76 mm / 7.87 x 2.71 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used.

Form Factor

Rackmount

HDMI Output

1, HDMI 1.4b (up to 4096 x 2160 @ 30Hz)

Jumbo Frame

Yes

Memory Slot

4 x UDIMM DDR4 For dual-DIMM configurations, you must use a pair of identical DDR4 modules.

Flash Memory

5GB (Dual boot OS protection)

Hot-swappable

Yes

System Memory

64 GB UDIMM DDR4 ECC

LED Indicators
