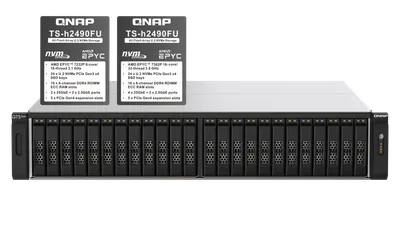

TS-h2490FU

Typ

NAS

Vikt

16.77 kg

Kylning

4 x 60mm, 12VDC

U.2-platser

24

Kontroller

AMD EPYC 7302P 16-core/32-thread processor, up to 3.3 GHz

Dimensioner

88.3 480.97 510.23 mm

2.5"-fack

24

3.5"-fack

24

Ethernet-portar

6

Värdanslutning

Ethernet

Diskgränssnitt

U.2 NVMe

Max Ethernet-hastighet

25 Gbps

Övriga specifikationer

SR-IOV

Yes

Buttons

Power, Reset

PCIe Slot

5 Slot 1: PCIe Gen4 x4 Slot 2: PCIe Gen4 x8 or x4 Slot 3: PCIe Gen4 x4 Slot 4: PCIe Gen4 x8 Slot 5: PCIe Gen4 x16 or x8 *Slot 4 and Slot 5 are preinstalled with 25GbE network adapters. Please reserve these slots for the 25GbE adapters for the best performance. **Slot 2 provides the width of PCIe Gen4 x8 when Slot 3 is not in use, and provides the width of PCIe Gen4 x4 when Slot 3 is in use. ***Slot 5 provides the width of PCIe Gen4 x16 when Slot 4 is not in use, and provides the width of PCIe Gen4 x8 when Slot 4 is in use. Card dimensions for PCIe slot 1：225 x 68.9 x 28.76 mm / 8.86 x 2.71 x 1.13 inches. Card dimensions for PCIe slot 2：225 x 68.9 x 18.76 mm / 8.86 x 2.71 x 0.74 inches. Card dimensions for PCIe slot 3：225 x 68.9 x 18.76 mm / 8.86 x 2.71 x 0.74 inches. Card dimensions for PCIe slot 4：225 x 68.9 x 39.08 mm / 8.86 x 2.71 x 1.54 inches. Card dimensions for PCIe slot 5：225 x 68.9 x 18.76 mm / 8.86 x 2.71 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used.

Form Factor

Rackmount

Jumbo Frame

Yes

Memory Slot

16 x RDIMM DDR4

Flash Memory

5GB (Dual boot OS protection)

Hot-swappable

Yes

System Memory
