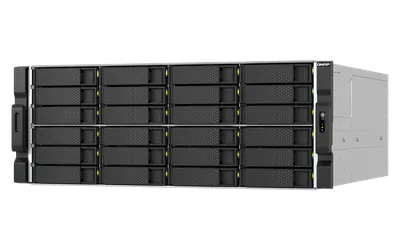

TS-h2477AXU-RP

Typ

NAS

Vikt

18.62 kg

Kylning

System fan: 3 x 60mm, 12VDC

M.2-platser

2

Kontroller

AMD Ryzen 7 Pro 7000 series 8-core/16-thread processor, burst up to 5.3 GHz AMD Radeon Graphics

Dimensioner

177.35 432.4 511.7 mm Excludes ear hook and the protruding part of the Power Supply Unit.

3.5"-fack

24

Ethernet-portar

12

Värdanslutning

Ethernet

Diskgränssnitt

SATA + M.2 NVMe

Max Ethernet-hastighet

10 Gbps

Övriga specifikationer

Buttons

Power, Reset

PCIe Slot

3 Slot 1: Gen 4 x 4 Slot 2: Gen 4 x 8 or Gen 4 x 4* Slot 3: Gen 4 x 4 *Slot 2 provides the width of PCIe Gen4 x8 when Slot 1 is not in use, and provides the width of PCIe Gen4 x4 when Slot 1 is in use. Card dimensions for PCIe slot 1：250 x 111.15 x 18.76 mm / 9.84 x 4.38 x 0.74 inches Card dimensions for PCIe slot 2：250 x 111.15 x 18.76 mm / 9.84 x 4.38 x 0.74 inches Card dimensions for PCIe slot 3：200 x 111.15 x 23.76 mm / 9.84 x 4.38 x 0.94 inches Wider cards can be installed if the next PCIe slot will not be used.

Form Factor

4U Rackmount

Jumbo Frame

Yes

Memory Slot

4 x UDIMM DDR5 Support optional ECC memory For dual-DIMM configurations, you must use a pair of identical DDR5 modules.

Flash Memory

8GB (Dual boot OS protection)

Hot-swappable

(Not supported M.2 SSD)

System Memory

32 GB UDIMM DDR5

LED Indicators

Power Status, HDD 1-24, M.2 SSD 1-2, Status, LAN, storage expansion port status

Maximum Memory
