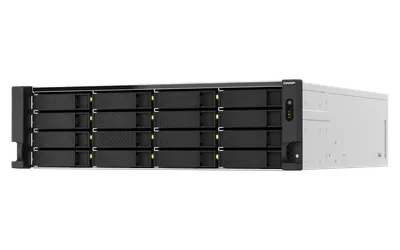

TS-h2287XU-RP

Typ

NAS

Vikt

17.47 kg

Kylning

3 x 60mm + 1 x 80mm, 12VDC

Kontroller

Intel Xeon E-2336 6C 12T 2.9GHz, up to 4.8GHz

Dimensioner

131.3 432 511.5 mm

2.5"-fack

6

3.5"-fack

16

Ethernet-portar

12

Värdanslutning

Ethernet

Diskgränssnitt

SATA

Max Ethernet-hastighet

10 Gbps

Övriga specifikationer

Buttons

Power, Reset

PCIe Slot

3 (2 x Gen4 x4 +1 x Gen 4 x8) Card dimensions for PCIe slot 1：250 x 111.15 x 23.76 mm / 9.84 x 4.38 x 0.94 inches. Card dimensions for PCIe slot 2：250 x 111.15 x 18.76 mm / 9.84 x 4.38 x 0.74 inches. Card dimensions for PCIe slot 3：250 x 111.15 x 18.76 mm / 9.84 x 4.38 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used.

Form Factor

3U Rackmount

HDMI Output

Optional via a PCIe adapter

Memory Slot

4 x ECC UDIMM DDR4 For dual-DIMM configuration, you must use a pair of identical DDR4 modules.

Flash Memory

5GB (Dual boot OS protection)

Hot-swappable

(Not supported M.2 SSD)

System Memory

32 GB ECC DDR4

LED Indicators

Status (Green/Red) LAN (Green) USB (Blue) HDD status (Green/Red)

Maximum Memory

128GB (4 x 32 GB)
