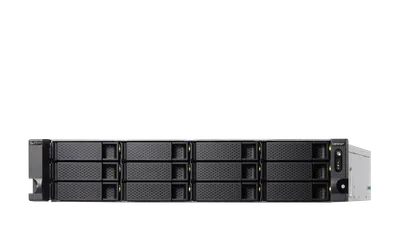

TS-h1886XU-RP R2

Typ

NAS

Vikt

14.5 kg

Kylning

System fan: 3 x 60mm, 12VDC

Kontroller

Intel Xeon D-1622 4-core processor, burst up to 3.2 GHz

Dimensioner

88.6 432 511.2 mm

2.5"-fack

6

3.5"-fack

12

Ethernet-portar

4

Värdanslutning

Ethernet

Diskgränssnitt

SATA

Max Ethernet-hastighet

10 Gbps

Övriga specifikationer

SR-IOV

Yes

Buttons

Power, Reset

PCIe Slot

3 Slot 1: PCIe Gen 2 x4 (x8 Slot) Slot 2: PCIe Gen 3 x4 Slot 3: PCIe Gen 3 x8 or x4 (x8 Slot) *Slot 3 is preinstalled with a 10GbE network adapter. **Slot 3 provides the width of PCIe Gen 3 x8 when Slot 2 is not in use, and provides the width of PCIe Gen 3 x4 when Slot 2 is in use. Card dimensions for PCIe slot 1：170 x 68.9 x 39.08 mm / 6.70 x 2.71 x 1.54 inches. Card dimensions for PCIe slot 2：170 x 68.9 x 18.76 mm / 6.70 x 2.71 x 0.74 inches. Card dimensions for PCIe slot 3：170 x 68.9 x 18.76 mm / 6.70 x 2.71 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used.

Form Factor

Rackmount

Jumbo Frame

Yes

Memory Slot

4 x UDIMM DDR4

Flash Memory

5GB (Dual boot OS protection)

Hot-swappable

Yes

System Memory

32 GB UDIMM DDR4 ECC

LED Indicators

HDD, SSD, Status, LAN, storage expansion port status
