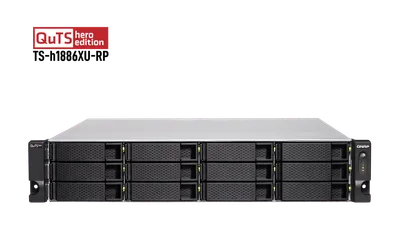

TS-h1886XU-RP

Typ

NAS

Vikt

14.5 kg

Kylning

System fan: 3 x 60mm, 12VDC

Kontroller

Intel Xeon D-1622 4-core 2.60 GHz processor, up to 3.2 GHz

Dimensioner

88.3 482 549.7 mm

2.5"-fack

6

3.5"-fack

12

Ethernet-portar

7

Värdanslutning

Ethernet

Diskgränssnitt

SATA

Max Ethernet-hastighet

10 Gbps

Övriga specifikationer

SR-IOV

Yes

Buttons

Power, Reset

PCIe Slot

4 Slot 1: PCIe Gen 3 x4 Slot 2: PCIe Gen 3 x8 or x4 Slot 3: PCIe Gen 3 x4 Slot 4: PCIe Gen 3 x8 or x4 *Slot 4 is preinstalled with a 10GbE network adapter. **Slot 2 provides the width of PCIe Gen 3 x8 when Slot 1 is not in use, and provides the width of PCIe Gen 3 x4 when Slot 1 is in use. ***Slot 4 provides the width of PCIe Gen 3 x8 when Slot 3 is not in use, and provides the width of PCIe Gen 3 x4 when Slot 3 is in use.

Form Factor

Rackmount

Jumbo Frame

Yes

Memory Slot

4 x UDIMM DDR4

Flash Memory

5GB (Dual boot OS protection)

Hot-swappable

Yes

System Memory

32 GB UDIMM DDR4 ECC

LED Indicators

HDD, SSD, Status, LAN, storage expansion port status

Maximum Memory

128 GB (4 x 32 GB)
