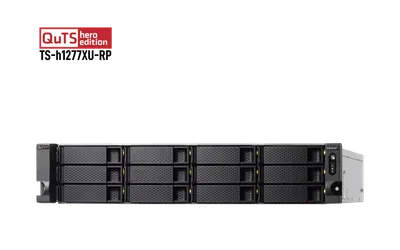

TS-h1277XU-RP

Typ

NAS

Vikt

13.96 kg

Kylning

System fan: 2 x 70mm, 12VDC

Kontroller

AMD Ryzen 7 3700X 8-core/16-thread processor, burst up to 4.4 GHz

Dimensioner

88.6 432 511.2 mm Excludes ear hook and the protruding part of the Power Supply Unit.

3.5"-fack

12

Ethernet-portar

5

Värdanslutning

Ethernet

Diskgränssnitt

SATA

Max Ethernet-hastighet

10 Gbps

Övriga specifikationer

Buttons

Power, Reset

PCIe Slot

4 Slot 1: PCIe Gen 3 x4 Slot 2: PCIe Gen 3 x8 or PCIe Gen 3 x4* Slot 3: PCIe Gen 3 x4 Slot 4: PCIe Gen 3 x8 or PCIe Gen 3 x4** *Slot 2 provides the width of PCIe Gen.3 x8 when Slot 1 is not in use, and provides the width of PCIe Gen.3 x4 when Slot 1 is in use. **Slot 4 provides the width of PCIe Gen.3 x8 when Slot 3 is not in use, and provides the width of PCIe Gen.3 x4 when Slot 3 is in use. ***PCIe slot 4 is preinstalled with a 10GbE network adapter ***PCIe slot 2 is preinstalled with a 10GbE SFP+ network adapter Card dimensions for PCIe slot 1：220 x 68.9x 39.08 mm / 8.66 x 2.71 x 1.54 inches. Card dimensions for PCIe slot 2~Slot 4：220 x 68.9x 18.76 mm / 8.66 x 2.71 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used.

Form Factor

2U Rackmount

Jumbo Frame

Yes

Memory Slot

4 x UDIMM DDR4

Flash Memory

5GB (Dual boot OS protection)

Hot-swappable

Yes

System Memory

128 GB UDIMM DDR4

LED Indicators

HDD 1-12, Status, LAN, storage expansion port status
