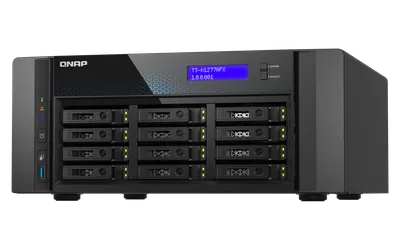

TS-h1277AFX

Typ

NAS

Vikt

8 kg

Kylning

2 x 92mm, 12VDC

Kontroller

AMD Ryzen 7 9000 Series 8C/16T 3.8 GHz, up to 5.5 GHz

Dimensioner

157.2 368 362 mm Dimensions do not include foot pad (foot pad may be up to 30 mm / 1.18 inches high depending on model)

2.5"-fack

12

3.5"-fack

12

Ethernet-portar

12

Värdanslutning

Ethernet

Diskgränssnitt

SATA

Max Ethernet-hastighet

10 Gbps

Övriga specifikationer

SR-IOV

Yes

Buttons

Power, Reset, USB Auto Copy

PCIe Slot

3 Slot 1: Gen 4 x 4 Slot 2: Gen 4 x 8 or Gen 4 x 4* Slot 3: Gen 4 x 8 *Slot 2 provides the width of PCIe Gen4 x8 when Slot 1 is not in use, and provides the width of PCIe Gen4 x4 when Slot 1 is in use. Card dimensions for PCIe slot 1 ~ Slot 2：185 x 111.15 x 18.76 mm / 7.28 x 4.38 x 0.74 inches. Card dimensions for PCIe slot 3：280 x 111.15 x 18.76 mm / 11.02 x 4.38 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used.

Form Factor

Tower

HDMI Output

1 x HDMI 1.4b ( up to 3840 x 2160 @ 30Hz )

Jumbo Frame

Yes

Memory Slot

4 x DDR5 UDIMM

Flash Memory

4GB (Dual boot OS protection)

Hot-swappable

(Not supported M.2 SSD)

System Memory

32 GB UDIMM DDR5 ECC

LED Indicators
