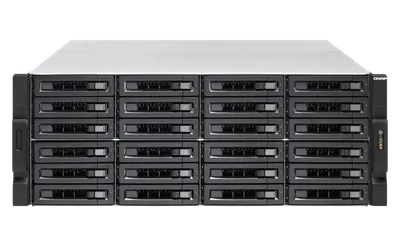

TS-EC2480U R2

Typ

NAS

Vikt

23.08 kg

Kylning

4 x 80mm smart cooling fan

Kontroller

Intel Xeon E3-1245 v3 4-core 3.4 GHz processor, E3-1246 v3 4-core 3.5 GHz processor or a compatible E3-1200 v3 family processor

Dimensioner

176.15 442.5 530.5 mm

3.5"-fack

24

Ethernet-portar

4

Värdanslutning

Ethernet

Diskgränssnitt

SATA

Max Ethernet-hastighet

10 Gbps

Övriga specifikationer

Buttons

Power, Reset

PCIe Slot

2 Slot 1: PCIe Gen 3 x8 Slot 2: PCIe Gen 3 x4 The PCIe Gen3 x8 slot is occupied by a 10GbE network adapter.

mSATA slot

2 (mSATA flash module is optional) For the optional mSATA flash, please visit http://shop.qnap.com/

Form Factor

4U Rackmount

HDMI Output

1

Jumbo Frame

Yes

Memory Slot

4 x DDR3 UDIMM When upgrading RAM to more than 28GB, the original 4GB RAM modules must be removed. For the information of RAM module installation and compatible NAS models, please refer to the QNAP RAM Module Installation Guide

Flash Memory

512MB (DOM for dual OS)

USB 2.0 port

4

Hot-swappable

Yes

System Memory

4GB UDIMM DDR3 ECC
