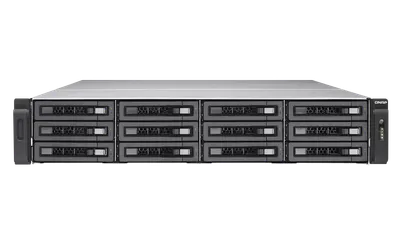

QNAP

TS-EC1280U

Name: TS-EC1280U
Brand: QNAP

Art.nr: TS-EC1280U

Specifikationer

Produktsida

Typ: NAS
Vikt: 14.18 kg
Kylning: 4 x 6 cm smart cooling fan
Kontroller: Intel Xeon E3-1200 v3 Family 3.4 GHz Quad Core Processor
Dimensioner: 88 (H) 442.5 (W) 530.5(D) mm 3.46 (H) 17.42 (W) 20.89(D) inch
3.5"-fack: 12
Ethernet-portar: 3
Värdanslutning: Ethernet
Max Ethernet-hastighet: 10 Gbps

Övriga specifikationer

1.: Power Button 5. Gigabit LAN x 4
2.: LED Indicators: 10 GbE, Status, LAN, Storage Expansion Port Status 6. USB 3.2 Gen 1 Port x 4
3.: Password & Network Settings Reset Button 7. Left slot: PCIe Gen.3 x 8 Right slot: PCIe Gen.3 x 4 (This PCIe slot is an open-edge design. It can be used with a Gen.3 x 8 card.)
4.: USB 2.0 Port x 4 8. Power Connector
USB: 4x USB 3.2 Gen 1 port (rear) 4x USB 2.0 port (rear) Support USB printer, pen drive, USB hub, and USB UPS etc.
Memory: System memory: 4 GB DDR3 ECC RAM Memory module pre-installed: 4 GB x1 Total memory slots: 4 Memory expandable up to: 32 GB (8GB x4) Note: When upgrading RAM to more than 28GB, the original 4GB RAM modules must be removed. For the information of RAM module installation and compatible NAS models, please refer to the QNAP RAM Module Installation Guide
Buttons: System: Power button and reset button
LAN Port: 4 x Gigabit RJ-45 Ethernet port (Expandable up to 8 x 1 Gb LAN or 4 x 10 Gb + 4 x 1 Gb LAN by installing optional dual-port 10 Gb and 1 Gb network card) Note: 1. For the optional network card compatibility list, please visit Compatibility list of Expansion Card 2. For the information of network card installation, please refer to chapter 6 in the Turbo NAS Hardware Manual.
PCIe Slot

Priser hos återförsäljare

Butik	Logotyp	Pris	Lager
Inga aktuella priser tillgängliga.

Recensioner

Laddar recensioner…

2 (1* PCIe Gen3 x8, 1* PCIe Gen3 x4)

Hard Drive

12 x 3.5-inch SATA 6Gbps/3Gbps hard drive or 2.5-inch SATA, 6Gbps/3Gbps hard drive SSD hard drive NOTE: The standard system is shipped without hard drives. For the hard drive compatibility list, please visit Compatibility list

TS-EC1280U

Ethernet cable x 4 Power cord x 2

Form Factor

2U, Rackmount

Alarm Buzzer

System warning

Flash Memory

512MB DOM

Power Supply

Redundant power: Input: 47-63 Hz; 100-127V~/ 8A; 200-240V/ 4A Output: 400W

Sound Level*

Sound pressure (LpAm) :55.3 dB(A)

LED Indicators

Status, 10 GbE, LAN, eSATA, storage expansion port status

Hard Drive Tray

12 x hot-swappable and lockable tray

Relative Humidity

5~95% non-condensing, wet bulb: 27˚C.

Internal Cache Port

Two mSATA port on board for read caching Note: The standard system is shipped without mSATA flash. For the optional mSATA flash, please visit http://shop.qnap.com/

Power Consumption (W)

Sleep mode: 80.41 In Operation: 166.58 W (with 12 x 1TB hard drive installed)

Multi-window, Multi-tasking based System Management Movable Icons and Personalized Desktop Smart Toolbar and Dashboard for Neat Display on System Status Smart Fan Control Dynamic DNS (DDNS) SNMP (v2 & v3) Resource Monitor Network Recycle Bin for File Deletion via CIFS/SMB and AFP Automatic Cleanup File Type Filter Comprehensive Logs (Events & Connection) Syslog Client Firmware Live Update System Settings Backup and Restore Restore to Factory Default Mobile App Qmanager for Remote Monitoring

Yes
