QNAP

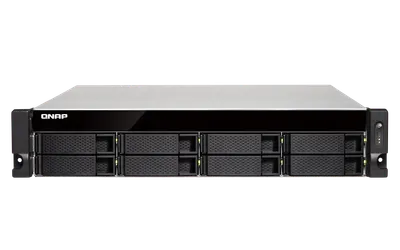

TS-873U

Art.nr: TS-873U

Typ: NAS
Vikt: 9.85 kg
Kylning: 2 x 70mm, 12 VDC
M.2-platser: 2
Kontroller: AMD R-Series RX-421ND 4-core 2.1 GHz processor, Turbo Core to 3.4 GHz
Dimensioner: 89 482 534 mm
3.5"-fack: 8
Ethernet-portar: 3
Värdanslutning: Ethernet
Diskgränssnitt: SATA + M.2
Max Ethernet-hastighet: 10 Gbps

Buttons: Power, Reset
TS-873U: Ethernet Cable x 2 Power Cord x 1
PCIe Slot: 1 Slot 1: PCIe Gen 3 x4 Pre-installed with a 10GbE adapter
Form Factor: 2U Rackmount
Jumbo Frame: Yes
Memory Slot: 4 x U-DIMM DDR4 For dual- or quad-DIMM configurations, you must use a pair of identical DDR4 modules.
Flash Memory: 512 MB (Dual boot OS protection)
USB 2.0 port: 4
Hot-swappable: (Not supported M.2 SSD)
System Memory: 4 GB UDIMM DDR4
LED Indicators: HDD 1-8, Status, LAN, USB, Power
Maximum Memory: 64 GB (4 x 16 GB)

Priser hos återförsäljare

Butik	Logotyp	Pris	Lager
Inga aktuella priser tillgängliga.

Laddar recensioner…

System Warning

Buzzer

CPU Architecture

64-bit x86

Other Interfaces

1 x 3.5mm console port

Encryption Engine

(AES-NI)

Power Supply Unit

250W PSU, 100 - 240V

Relative Humidity

5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)

Standard Warranty

3 years

USB 3.2 Gen 1 port

Storage Temperature

-20 - 70°C (-4°F - 158°F)

Operating Temperature

0 - 40 °C (32°F - 104°F)

USB 3.2 Gen 2 (10Gbps) Port

Optional via a PCIe adapter

Gigabit Ethernet Port (RJ45)

4 Expandable with an optional PCIe adapter

Quick Installation Guide (QIG)

M.2 SSD Heatsink x 2

SSD Cache Acceleration Support

Yes

Flat head screw x 32 (for 3.5" HDD)

Flat head screw x 24 (for 2.5" HDD) M.2 SSD installation kit: KIT-M2SSDINST-01

Power Consumption: Disk Standby Mode

35.52 W

Power Consumption: Operating Mode, Typical

103.88 W Tested fully populated with WD10EFRX hard drives.

Max. Number of Concurrent Connections (CIFS) - with Max. Memory

1200
