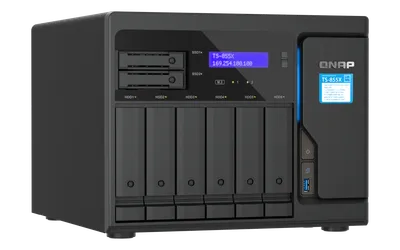

TS-855X

Typ

NAS

Vikt

10.04 kg

Kylning

System fan: 2 x 80mm, 12VDC CPU fan: 1 x 90mm, 12VDC

M.2-platser

2

Kontroller

Intel Atom C5125 8-core processor, 2.8GHz

Dimensioner

225 292.9 319.8 mm Dimensions do not include foot pad (foot pad may be up to 30 mm / 1.18 inches high depending on model)

2.5"-fack

2

3.5"-fack

6

Ethernet-portar

12

Värdanslutning

Ethernet

Diskgränssnitt

SATA + M.2 NVMe

Max Ethernet-hastighet

10 Gbps

Övriga specifikationer

SR-IOV

Yes

Buttons

Power, Reset, USB Auto Copy

PCIe Slot

2 Slot 1: PCIe Gen 3 x4 Slot 2: PCIe Gen 3 x4 Card dimensions for PCIe slot 1：260 x 111.15 x 18.76 mm / 10.25 x 4.38 x 0.74 inches Card dimensions for PCIe slot 2：150 x 68.9 x 18.76 mm / 5.90 x 2.71 x 0.74 inches.

Form Factor

Tower

Jumbo Frame

Yes

Memory Slot

4 x U-DIMM DDR4 Support ECC memory

Flash Memory

5GB (Dual boot OS protection)

USB 2.0 port

1

Hot-swappable

The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots.

System Memory

8 GB non-ECC UDIMM DDR4

LED Indicators

Power/Status, LAN, USB, HDD1-6, SSD 1-2, M.2 SSD 1-2
