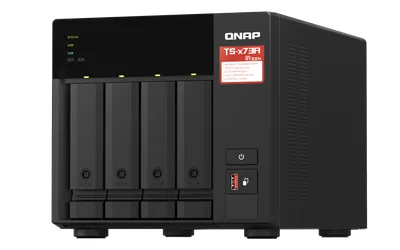

TS-473A

Typ

NAS

Vikt

5.54 kg

Kylning

System fan: 1 x 120mm CPU fan: 1 x 60mm

M.2-platser

2

Kontroller

AMD Ryzen Embedded V1500B 4-core/8-thread 2.2 GHz processor

Dimensioner

180.2 199.3 279.6 mm Dimensions do not include foot pad (foot pad may be up to 30 mm / 1.18 inches high depending on model)

3.5"-fack

4

Ethernet-portar

2

Värdanslutning

Ethernet

Diskgränssnitt

SATA + M.2 NVMe

Max Ethernet-hastighet

2.5 Gbps

Övriga specifikationer

Buttons

Power, Reset, USB Auto Copy

PCIe Slot

2 Slot 1: PCIe Gen 3 x4 Slot 2: PCIe Gen 3 x4 Card dimensions for PCIe slot 1~Slot 2：200 x 68.9 x 18.76 mm / 7.87 x 2.71 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used.

Form Factor

Tower

HDMI Output

Optional via a PCIe adapter

Jumbo Frame

Yes

Memory Slot

2 x SODIMM DDR4 Support ECC memory For dual-DIMM configurations, you must use a pair of identical DDR4 modules.

Flash Memory

5GB (Dual boot OS protection)

Hot-swappable

The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots.

System Memory

8 GB SODIMM DDR4

LED Indicators

Status/Power, USB, LAN, Drive 1-4, M.2 SSD 1-2

Maximum Memory
