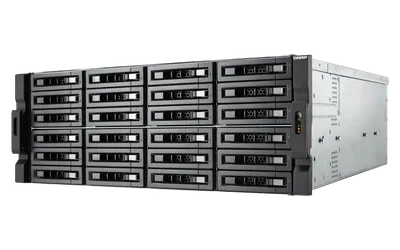

TS-2483XU-RP

Typ

NAS

Vikt

22.9 kg

Kylning

System fan: 4 x 92mm, 12VDC

Kontroller

Intel Xeon E E-2136 6-core / 12-thread processor

Dimensioner

176.15 481.04 672.02 mm Excludes ear hook and the protruding part of the Power Supply Unit.

3.5"-fack

24

Ethernet-portar

7

Värdanslutning

Ethernet

Diskgränssnitt

SATA

Max Ethernet-hastighet

10 Gbps

Övriga specifikationer

Buttons

Power, Reset

PCIe Slot

5 Slot 1: PCIe Gen 2 x4 (PCH) Slot 2: PCIe Gen 3 x4 (CPU) Slot 3: PCIe Gen 2 x4 (PCH) Slot 4: PCIe Gen 3 x8 (CPU) Slot 5: PCIe Gen 2 x4 (PCH) Slot 5 is preinstalled with a 10GbE network adapter Card dimensions for PCIe slot 1：260 x 131.15 x 28.76 mm / 10.24 x 5.16 x 1.13 inches. Card dimensions for PCIe slot 2：300 x 131.15 x 18.76 mm / 11.81 x 5.16 x 0.74 inches. Card dimensions for PCIe slot 3：300 x 131.15 x 28.76 mm / 11.81 x 5.16 x 1.13 inches. Card dimensions for PCIe slot 4：300 x 131.15 x 18.76 mm / 11.81 x 5.16 x 0.74 inches. Card dimensions for PCIe slot 5：300 x 131.15 x 18.76 mm / 11.81 x 5.16 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used.

Form Factor

4U Rackmount

Jumbo Frame

Yes

Memory Slot

4 x UDIMM DDR4

Flash Memory

5GB (Dual boot OS protection)

Hot-swappable

Yes

System Memory

16 GB UDIMM DDR4 ECC

LED Indicators

HDD 1-24, Status, LAN, storage expansion port status

Maximum Memory
