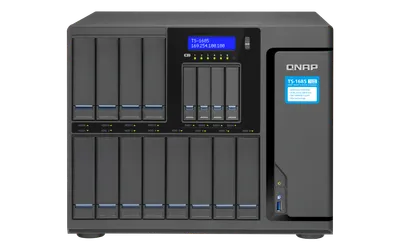

TS-1685

Typ

NAS

Vikt

13.39 kg

Kylning

System fan: 3 x 92mm, 12VDC CPU fan: 2 x 90mm

M.2-platser

6

Kontroller

Intel Xeon D-1521 4-core 2.4 GHz processor, Max turbo to 2.7 GHz.

Dimensioner

303.84 369.89 319.8 mm

2.5"-fack

4

3.5"-fack

12

Ethernet-portar

15

Värdanslutning

Ethernet

Diskgränssnitt

SATA + M.2

Max Ethernet-hastighet

10 Gbps

Övriga specifikationer

Buttons

Power, Reset, USB Auto Copy

TS-1685

Ethernet Cable x 4 10GBASE-T Ethernet Cable x 2

PCIe Slot

3 Slot 1: PCIe Gen 3 x8 Slot 2: PCIe Gen 2 x4 Slot 3: PCIe Gen 3 x8

Form Factor

Tower

Jumbo Frame

Yes

Memory Slot

4 x UDIMM DDR4 IMPORTANT: You can only use one type of dual in-line memory module (DIMM) at a time. Do not use Registered DIMM (RDIMM) with Unbuffered DIMM (UDIMM) memory.

Audio Output

1 x built-in speaker, 1 x 3.5mm line out jack (for amplifiers or speakers) Only one of the above audio output ports can work at a time. If a speaker is connected, the sound will output through the speaker.

Flash Memory

512MB (DOM for dual OS)

Hot-swappable

(Not supported M.2 SSD)

System Memory

8GB UDIMM DDR4

LED Indicators
