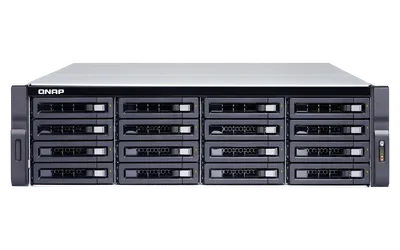

TS-1677XU-RP

Typ

NAS

Vikt

15.26 kg

Kylning

System fan: 4 x 92mm, 12VDC

Kontroller

AMD Ryzen 7 2700 8-core/16-thread processor, burst up to 4.1 GHz

Dimensioner

130 481 573.5 mm Excludes ear hook and the protruding part of the Power Supply Unit.

3.5"-fack

16

Ethernet-portar

5

Värdanslutning

Ethernet

Diskgränssnitt

SATA

Max Ethernet-hastighet

10 Gbps

Övriga specifikationer

Buttons

Power, Reset

PCIe Slot

4 Slot 1: PCIe Gen 3 x4 Slot 2: PCIe Gen 3 x8 or PCIe Gen 3 x4* Slot 3: PCIe Gen 3 x4 Slot 4: PCIe Gen 3 x8 or PCIe Gen 3 x4** *Slot 2 provides the width of PCIe Gen.3 x8 when Slot 1 is not in use, and provides the width of PCIe Gen.3 x4 when Slot 1 is in use. **Slot 4 provides the width of PCIe Gen.3 x8 when Slot 3 is not in use, and provides the width of PCIe Gen.3 x4 when Slot 3 is in use.

Form Factor

3U Rackmount

Jumbo Frame

Yes

Memory Slot

4 x UDIMM DDR4

Flash Memory

5GB (Dual boot OS protection)

Hot-swappable

Yes

System Memory

16 GB UDIMM DDR4

LED Indicators

HDD 1-16, Status, LAN, storage expansion port status

Maximum Memory

64 GB (4 x 16 GB)

System Warning

Buzzer
