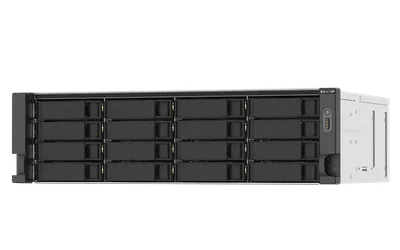

TS-1673AU-RP

Typ

NAS

Vikt

13.53 kg

Kylning

3 x 80mm, 12VDC

Kontroller

AMD Ryzen Embedded V1500B 4-core/8-thread 2.2 GHz processor

Dimensioner

131.3 432 370.9 mm Excludes ear hook and the protruding part of the Power Supply Unit.

3.5"-fack

16

Ethernet-portar

2

Värdanslutning

Ethernet

Diskgränssnitt

SATA

Max Ethernet-hastighet

2.5 Gbps

Övriga specifikationer

Buttons

Power, Reset

PCIe Slot

2 x PCIe Gen3 x4 With a riser card (two PCIe slots): slot 1:160 x 68.9x 18.76 mm / 6.3 x 2.71 x 0.74 inches. slot 2:160 x 68.9x 39.08 mm / 6.3 x 2.71 x 1.54 inches. Wider cards can be installed if the next PCIe slot will not be used. Without a riser card (one PCIe slot): Slot 1:160 x 111.15 x 39.08 mm / 6.3 x 4.38 x 1.54 inches.

Form Factor

3U Rackmount

HDMI Output

Optional via a PCIe graphics card

Jumbo Frame

Yes

Memory Slot

2 x UDIMM DDR4 Support ECC memory For dual-DIMM configurations, you must use a pair of identical DDR4 modules.

Flash Memory

5GB (Dual boot OS protection)

Hot-swappable

(Not supported M.2 SSD)

System Memory

16 GB UDIMM DDR4

LED Indicators

HDD 1-16, Status, LAN, USB, Power

Maximum Memory
