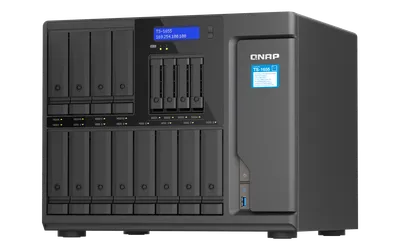

TS-1655

Typ

NAS

Vikt

14.24 kg

Kylning

System fan: 3 x 92mm, 12VDC CPU fan: 2 x 97mm, 12VDC

M.2-platser

2

Kontroller

Intel Atom C5125 8-core processor, 2.8GHz

Dimensioner

294.29 369.89 319.8 mm Dimensions do not include foot pad (foot pad may be up to 30 mm / 1.18 inches high depending on model)

2.5"-fack

4

3.5"-fack

12

Ethernet-portar

2

Värdanslutning

Ethernet

Diskgränssnitt

SATA + M.2 NVMe

Max Ethernet-hastighet

2.5 Gbps

Övriga specifikationer

SR-IOV

Yes

Buttons

Power, Reset, USB Auto Copy

PCIe Slot

3 Slot 1: PCIe Gen 3 x4 Slot 2: PCIe Gen 3 x4 Slot 3: PCIe Gen 3 x4 Card dimensions for PCIe slot 1：260 x 111.15 x 37.52 mm / 10.25 x 4.38 x 1.48 inches. Card dimensions for PCIe slot 2：150 x 68.9 x 18.76 mm / 5.90 x 2.71 x 0.74 inches. Card dimensions for PCIe slot 3：150 x 68.9 x 18.76 mm / 5.90 x 2.71 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used.

Form Factor

Tower

Jumbo Frame

Yes

Memory Slot

4 x U-DIMM DDR4 Support ECC memory

Flash Memory

5GB (Dual boot OS protection)

Hot-swappable

The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots.

System Memory

8 GB non-ECC UDIMM DDR4

LED Indicators

Power/Status, LAN, USB, HDD1-12, SSD 1-4, M.2 SSD 1-2
