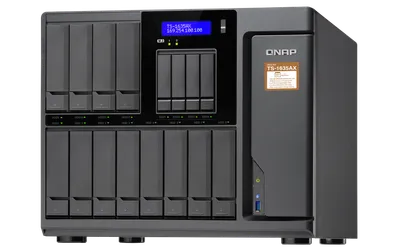

QNAP
TS-1635AX
Art.nr: TS-1635AX
Specifikationer
Produktsida- Typ
- NAS
- Vikt
- 12.06 kg
- Kylning
- System fan: 3 x 92mm, 12VDC CPU fan: 1 x 60mm, 12VDC
- M.2-platser
- 2
- Kontroller
- Marvell ARMADA 8040 ARMv8 Cortex-A72 4-core 1.6 GHz processor
- Dimensioner
- 303.84 369.89 319.8 mm
- 2.5"-fack
- 4
- 3.5"-fack
- 12
- Ethernet-portar
- 3
- Värdanslutning
- Ethernet
- Diskgränssnitt
- SATA + M.2
- Max Ethernet-hastighet
- 10 Gbps
Övriga specifikationer
- Buttons
- Power, Reset, USB Auto Copy
- PCIe Slot
- 2 Slot 1: PCIe Gen 3 x2 Slot 2: PCIe Gen 3 x1 Card dimensions for PCIe slot 1：260 x 111.15 x 37.52 mm / 10.25 x 4.38 x 1.48 inches. Card dimensions for PCIe slot 2：150 x 68.9 x 37.52 mm / 5.90 x 2.71 x 1.48 inches.
- Form Factor
- Tower
- Jumbo Frame
- Yes
- Memory Slot
- 1 x U-DIMM DDR4
- Audio Output
- - (The line out jack and speaker are no longer available on units manufactured on or after 2021/1/1)
- Flash Memory
- 512 MB (Dual boot OS protection)
- Hot-swappable
- The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots.
- System Memory
- 4 GB UDIMM DDR4
- LED Indicators
- Power/Status, LAN, USB, HDD1-12, SSD 1-4, M.2 SSD 1-2
- Maximum Memory
