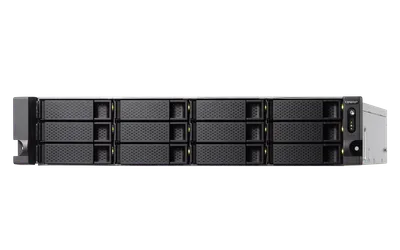

TS-1283XU-RP

Typ

NAS

Vikt

14.16 kg

Kylning

System fan: 2 x 60mm, 12VDC

Kontroller

Intel Xeon E-2124 4-core 3.3 GHz processor (burst up to 4.3 GHz)

Dimensioner

88.3 482 562 mm Excludes ear hook and the protruding part of the Power Supply Unit.

3.5"-fack

12

Ethernet-portar

7

Värdanslutning

Ethernet

Diskgränssnitt

SATA

Max Ethernet-hastighet

10 Gbps

Övriga specifikationer

Buttons

Power, Reset

PCIe Slot

4 Slot 1: PCIe Gen 2 x4 (PCH) Slot 2: PCIe Gen 3 x8 (CPU) Slot 3: PCIe Gen 3 x4 (CPU) Slot 4: PCIe Gen 3 x4 (CPU) Slot 4 is preinstalled with a 10GbE network adapter Card dimensions for PCIe slot 1：220 x 68.9x 39.08 mm / 8.66 x 2.71 x 1.54 inches. Card dimensions for PCIe slot 2~Slot 4：220 x 68.9x 18.76 mm / 8.66 x 2.71 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used.

Form Factor

2U Rackmount

Jumbo Frame

Yes

Memory Slot

4 x UDIMM DDR4

Flash Memory

5GB (Dual boot OS protection)

Hot-swappable

Yes

System Memory

8 GB UDIMM DDR4 ECC

LED Indicators

HDD 1-12, Status, LAN, storage expansion port status

Maximum Memory

128 GB (4 x 32 GB)

System Warning
