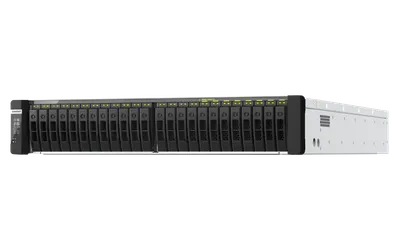

TDS-h2489FU

Typ

NAS

Vikt

22.77 kg

Kylning

6 x 60mm, 12VDC

M.2-platser

1

U.2-platser

24

Kontroller

2 x Intel Xeon Silver 4314 16-core/32-thread processor, up to 3.4 GHz

Dimensioner

88.3 446.2 713.2 mm

2.5"-fack

16

3.5"-fack

24

Ethernet-portar

4

Värdanslutning

Ethernet

Diskgränssnitt

SATA + U.2 NVMe + M.2 NVMe

Max Ethernet-hastighet

25 Gbps

Övriga specifikationer

SR-IOV

Yes

Buttons

Power, Reset, OLED

PCIe Slot

2 Slot 1: PCIe Gen4 x16 Slot 2: PCIe Gen4 x8 *Slot 2 is preinstalled with a 25GbE network adapter. **Slot 1 provides the width of PCIe Gen4 x16 when Slot 2 is not in use, and provides the width of PCIe Gen4 x8 when Slot 2 is in use. Card dimensions for PCIe slot 1：225 x 68.9 x 39.08 mm / 8.86 x 2.71 x 1.54 inches. Card dimensions for PCIe slot 2：225 x 68.9 x 18.76 mm / 8.86 x 2.71 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used.

Form Factor

Rackmount

Jumbo Frame

Yes

Memory Slot

32 x RDIMM DDR4 ECC (16 x slots per socket)

Flash Memory

5GB (Dual boot OS protection)

Hot-swappable

(Not supported M.2 SSD)

System Memory

1 TB RDIMM DDR4 ECC

LED Indicators

SSD, Status, Power, Fan, Temperaure, Power Module Status, Device Name, IP Address
