Managed via QNAP QTS OS 1. Supports disk S.M.A.R.T. information 2. RAID expansion enclosure identifier 3. Locate RAID expansion enclosures 4. Locate hard disks on RAID expansion enclosure 5. Smart fan control by detecting system and hard drive temperature 6. In-band SAS firmware update
SAS-6G2E-U
Dual-wide-port storage expansion card, SAS 6Gbps. Applied NAS models: TS-879U-RP, TS-EC879U-RP, TS-1279U-RP, TS-EC1279U-RP, TS-1679U-RP, TS-EC1679U-RP, TS-EC1279U-SAS-RP, TS-EC1679U-SAS-RP, TS-870U-RP, TS-1270U-RP. Note: The storage expansion card is used to be installed in NAS for connecting to the RAID Expansion Enclosures.
Form Factor
3U Rackmount
RAIL-A03-57
A03 series (Chassis) rail kit, max. load 57 kg
Hot-swappable
Yes

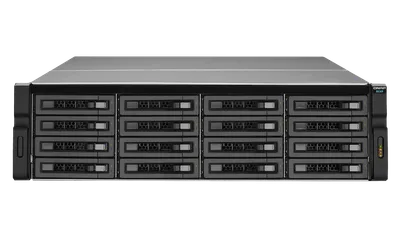

REXP-1600U-RP
Hardware Installation CD 0.5m SAS cable
LED Indicators
Front panel: Status, fault, system over heat, fan error Rear panel: SAS link, SAS error, enclosure ID
System Warning
Buzzer
Weight (Gross)
Priser hos återförsäljare
Butik
Logotyp
Pris
Lager
Inga aktuella priser tillgängliga.
Recensioner
Laddar recensioner…
25.92 kg
CAB-SAS05M-8088
Mini SAS external cable (SFF-8088 to SFF-8088), 0.5 m
CAB-SAS10M-8088
Mini SAS external cable (SFF-8088 to SFF-8088), 1.0 m
QTS / QuTS hero
Yes
Power Supply Unit
Redundant/ Hot Swap ATX Power Supply, 600W, 100-240Vac~, 50-60Hz
Relative Humidity
5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Storage Temperature
-20 - 70°C (-4°F - 158°F)
CAB-SAS10M-8644-8088
Mini SAS external cable (SFF 8644 to SFF 8088), 1.0 m
Operating Temperature
0 - 40 °C (32°F - 104°F)
Supports JBOD cascading
Yes
Power Consumption: Operating Mode, Typical
289 W Tested with drives fully populated.
REXP-1600U-RP Hardware Installation CD 0.5m SAS cable
REXP-1600U-RP Hardware Installation CD 0.5m SAS cable
The functions listed below are managed via the QNAP QTS operating system. Support for hard disk’s S.M.A.R.T. capacity RAID expansion enclosure LED identifier Location indication of RAID expansion enclosure Location indication of hard disks on RAID expansion enclosure Smart fan control In-band firmware update
Yes
Expansion Enclosure Management The functions listed below are managed via the QNAP QTS operating system. Support for hard disk’s S.M.A.R.T. capacity RAID expansion enclosure LED identifier Location indication of RAID expansion enclosure Location indication of hard disks on RAID expansion enclosure Smart fan control In-band firmware update
Expansion Enclosure Management The functions listed below are managed via the QNAP QTS operating system. Support for hard disk’s S.M.A.R.T. capacity RAID expansion enclosure LED identifier Location indication of RAID expansion enclosure Location indication of hard disks on RAID expansion enclosure Smart fan control In-band firmware update QNAP Flexible Volume The disks, RAID Groups, storage pools, and volumes in the RAID expansion enclosures are configured via the QTS operating system. Support for multiple RAID groups in a storage pool to ensure data safety Online storage pool expansion Online volume expansion Block-based iSCSI LUN Support for thin-provisioned volume with space reclamation Support for thin-provisioned iSCSI LUN with space reclamation QNAP Flexible Volume The disks, RAID Groups, storage pools, and volumes in the RAID expansion enclosures are configured via the QTS operating system. Support for multiple RAID groups in a storage pool to ensure data safety Online storage pool expansion Online volume expansion Block-based iSCSI LUN Support for thin-provisioned volume with space reclamation Support for thin-provisioned iSCSI LUN with space reclamation
Optional Purchase Order P/N Product descriptions SAS-6G2E-U Dual-wide-port storage expansion card, SAS 6Gbps. Applied NAS models: TS-879U-RP, TS-EC879U-RP, TS-1279U-RP, TS-EC1279U-RP, TS-1679U-RP, TS-EC1679U-RP, TS-EC1279U-SAS-RP, TS-EC1679U-SAS-RP, TS-870U-RP, TS-1270U-RP. Note: The storage expansion card is used to be installed in NAS for connecting to the RAID Expansion Enclosures. RAIL-A03-57 A03 series (Chassis) rail kit, max. load 57 kg CAB-SAS10M-8088 Mini SAS external cable (SFF-8088 to SFF-8088), 1.0 m CAB-SAS05M-8088 Mini SAS external cable (SFF-8088 to SFF-8088), 0.5 m CAB-SAS10M-8644-8088 Mini SAS external cable (SFF 8644 to SFF 8088), 1.0 m
Optional Purchase Order P/N Product descriptions SAS-6G2E-U Dual-wide-port storage expansion card, SAS 6Gbps. Applied NAS models: TS-879U-RP, TS-EC879U-RP, TS-1279U-RP, TS-EC1279U-RP, TS-1679U-RP, TS-EC1679U-RP, TS-EC1279U-SAS-RP, TS-EC1679U-SAS-RP, TS-870U-RP, TS-1270U-RP. Note: The storage expansion card is used to be installed in NAS for connecting to the RAID Expansion Enclosures. RAIL-A03-57 A03 series (Chassis) rail kit, max. load 57 kg CAB-SAS10M-8088 Mini SAS external cable (SFF-8088 to SFF-8088), 1.0 m CAB-SAS05M-8088 Mini SAS external cable (SFF-8088 to SFF-8088), 0.5 m CAB-SAS10M-8644-8088 Mini SAS external cable (SFF 8644 to SFF 8088), 1.0 m
